Bathtub Door|Roller D2

56"-60" W x 62" H Semi-Frameless Double Sliding Bathtub Door with 5/16" (8 mm) Clear Glass and Stainless Steel Towel Bar

SKU: D2-6062BG

Sale price$519.99 Regular price$549.99
Save 5%
Finish: Brushed Gold
AQUIVACOAST® MEASURING GUIDE

Before you start, make sure you’re measuring from either fully finished walls or surfaces where the tile thickness has already been accounted for. Do not measure from bare studs.

Vertical Opening ("A" Measurement)
Measure from the top of the shower or bathtub threshold up to the top edge of your finished wall (tile or acrylic surround).

Horizontal Opening ("B" Measurement)
Measure the width of the opening at both the top and bottom. Some doors are designed to adjust for out-of-plumb walls (walls that are not perfectly vertical), while others require perfectly level openings. For AquivaCoast® doors with out-of-plumb adjustment, the maximum allowable difference between top and bottom measurements is typically 25/32" total (about 20mm).

Sill/Threshold Depth ("C" Measurement)
Measure the front-to-back depth of your shower or tub threshold.

Additional Considerations:

Stud Location: Most AquivaCoast® doors need to be anchored into wall studs for secure installation. Please check your wall structure during the installation process.

Clearance Height: Check that there’s enough overhead clearance to tilt and install the glass panels.

Required measurements vary by product. For additional help, visit our FAQs or contact our Customer Support Team.






Ordered

Sep 13

Dispatched

Sep 14 - Sep 15

Delivered

Sep 17 - Sep 21

*Estimated delivery dates are based on business days and may vary.

Aquivacoast Free Replacement Logo

We understand that heavy glass and metal hardware can be fragile. For your peace of mind, should your items rarely arrive damaged, please follow the process below, and we'll provide a free replacement promptly at no extra cost.

Guaranteed Free Replacement Process

Please notify us of any damage or missing parts within 48 hours of delivery by contacting us through our Contact Page. If you notice any damage when the delivery driver is present, please refuse the delivery or record the damage on the delivery receipt. If you cannot inspect the shipment with the driver present but see damage to the boxes, please report it to us with photos of the original boxes before opening. This helps us understand how the damage occurred.

Our processes and materials are carefully designed with heavy-duty and weather-resistant packaging to minimize damage during storage and shipping. Damage is extremely rare, and most orders arrive in perfect condition. Should you find any damage to a product or part, we will promptly send you a replacement free of charge.

Bypass Bathtub Door
56"-60" x 62"
5/16" Glass
Reversible Installation
Width Adjusts Up to 4" By Cutting Rail
Towel Bar
Quick Installation
25/64" Out-of-Plumb Adjustment
Easy-Clean Glass

Product Specification

Flexible Fit: Fits openings from 56 to 60 inches wide. Adjustable width up to 4 inches by trimming the top and bottom tracks—ideal for various bathroom layouts.

Tempered Safety Glass: Constructed with 5/16 in. (8mm) thick clear tempered glass, compliant with ANSI Z97.1 standards for strength and safety.

Smooth Sliding Mechanism: Features two visible 40mm diameter rollers and two hidden rollers for smooth, stable gliding. All mounted on a square stainless steel top rail for enhanced durability and style.

Reversible Design: Allows left or right opening installation for maximum flexibility and ease of use.

Dual Towel Bars Included: Integrated stainless steel bars on both panels add practicality without sacrificing style.

Installation Flexibility: Allows up to 25/64 in. adjustment to compensate for out-of-plumb walls. Top rail can be trimmed up to 4 in. for customized width fit.

Measurement Tip: Take all measurements only after the wall finishes (tiles, back panels, etc.) are completed for an accurate fit.

Series Name

Roller

Dimensions

Fits Openings 56–60" Wide, 62" Height

Walk-in opening

27.56"

Glass

5/16" (8mm) Clear Tempered Safety Glass

Door Type

Double Sliding

Frame Type

Semi-Framed

Finish Options

Brushed Gold / Matte Black / Brushed Nichel

Fast & Free U.S. Shipping

Your purchase delivered to you free of charge anywhere in the United States.

30-Day Money Back Guarantee

You can return the product within 30 days from the date of receipt, with no reason required.

1 Year Limited Warranty

We offer a 1-year limited warranty for all AquivaCoast products.

Transform Your Daily Routine with Effortless Elegance

Every detail of this double sliding bathtub door is designed to bring harmony between form and function. Whether you're starting your day or winding down, the smooth-gliding doors, crystal-clear tempered glass, and sleek stainless steel hardware create a calm, refined bathing experience. With adjustable tracks to fit a variety of layouts and finishes that complement any decor, it’s more than just a tub door—it’s a thoughtful upgrade to your everyday space. Let your bathroom reflect the same balance of beauty and practicality that defines the rest of your home.

56"-60" x 62" Semi-Framed Double Sliding Tub Door Roller D2-6062BG #Color_Brushed Gold

ANSI-Certified Tempered Glass with Elegant Finish Options

Crafted from 5/16 in. (8mm) thick clear tempered glass that meets ANSI Z97.1 safety standards, this door ensures strength and impact resistance. Available in Brushed Nickel, Matte Black, and Brushed Gold finishes, it blends beautifully with any bathroom decor, offering both protection and style.

56"-60" x 62" Semi-Framed Double Sliding Tub Door Roller D2-6062BG #Color_Brushed Gold

Smooth and Quiet Sliding System

Engineered for a smooth glide, the system features two visible 40mm rollers and two hidden rollers, ensuring quiet, stable operation. Mounted on a square stainless steel top rail, the hardware not only enhances durability but also adds a sleek, modern look to your bathroom.

56"-60" x 62" Semi-Framed Double Sliding Tub Door Roller D2-6062BG #Color_Brushed Gold

Adjustable Width for Versatile Tub Openings

Designed to fit 56–60 inch tub openings, this double sliding bathtub door offers up to 4 inches of width adjustment by trimming the top and bottom tracks. Ideal for both new installations and remodels, it’s perfect for uneven walls or custom bathroom layouts where flexibility is key.

d2 bypass bathtub door 60 inch

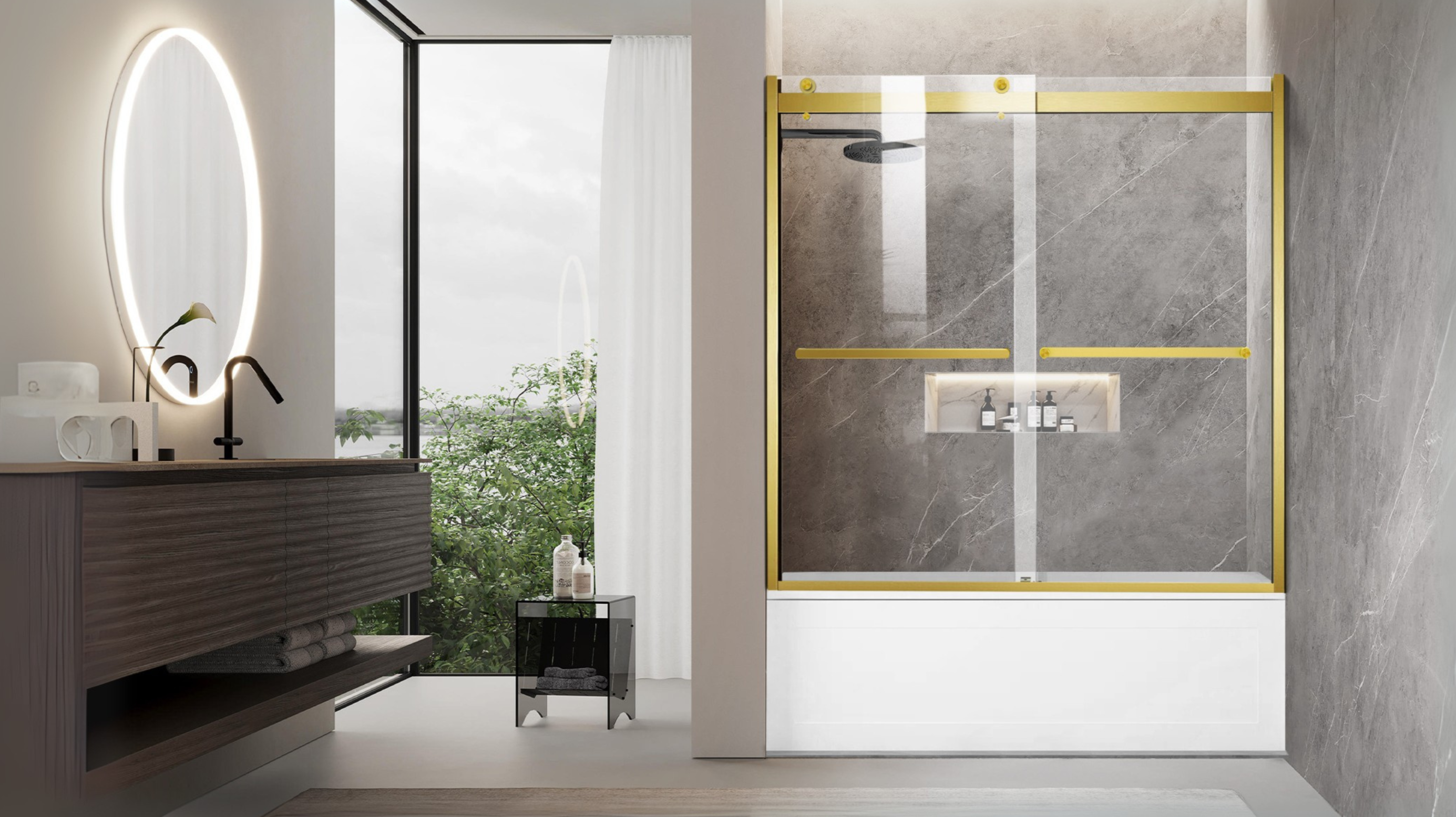

Roller D2 Bypass Bathtub Door

Smooth-gliding double sliding bathtub door with crystal-clear glass and sleek hardware for a stylish, practical upgrade.

Roller D2 60 inch double sliding bathtub shower door

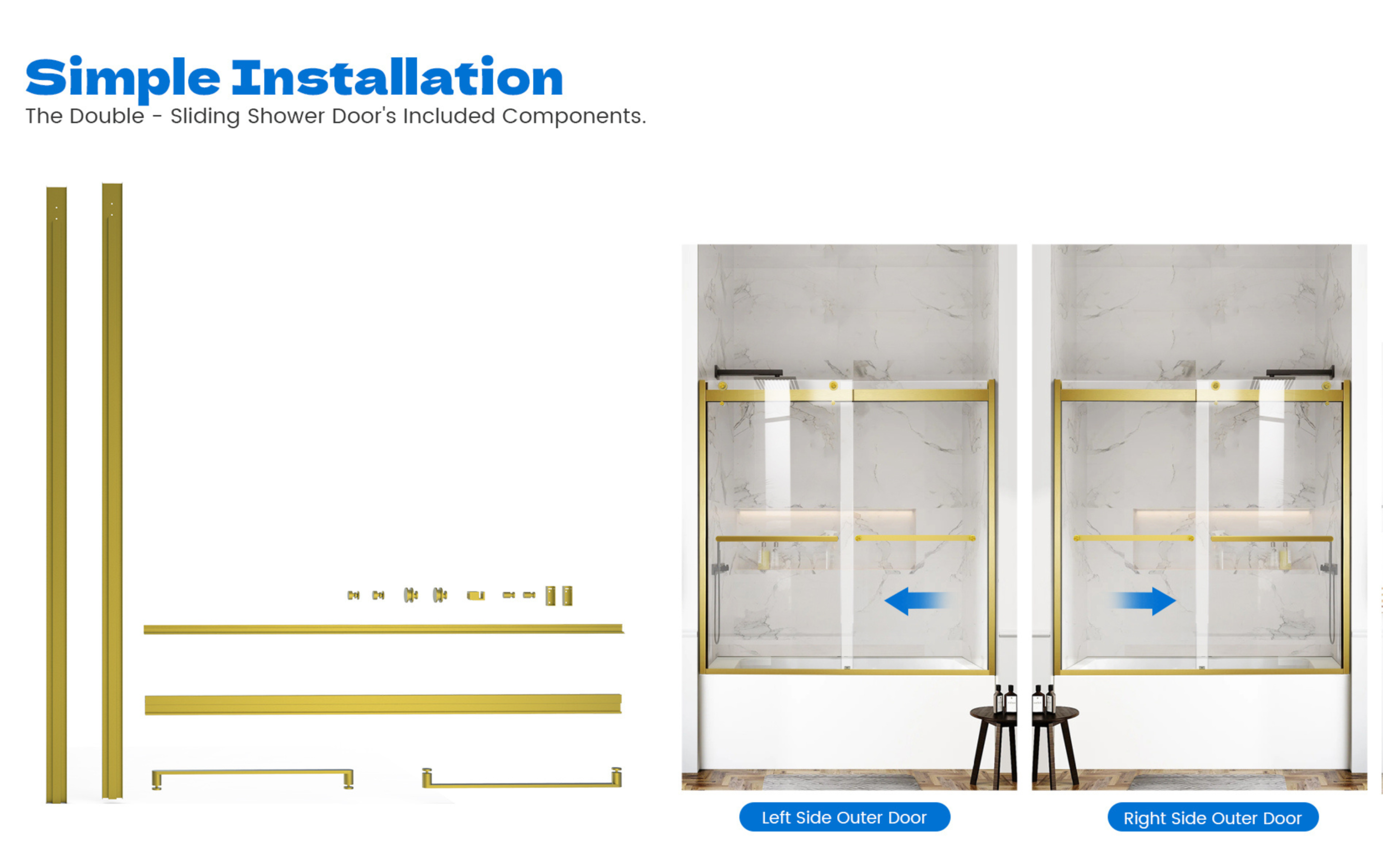

Simple Installation with Premium Components

Designed for easy, hassle-free setup, this shower door features high-quality components that ensure a durable, smooth, and reliable installation every time.

Installation Guide

Download
