Shower Door|Aurora A10P

24"/28"/30"/32"/34"/36" W x 72" H Frameless Hinged Shower Door with 5/16" (8 mm) Easy-Clean Clear Tempered Glass and Towel Handle

SKU: SWA6211-A10-1

Sale price$269.00 Regular price$349.00
Save 23%
Finish: Matte Black
AQUIVACOAST® MEASURING GUIDE

Shower Pans

Unlike the shower door measurements, which rely on fully finished surfaces, shower pan measurements are taken from the bare framing. All dimensions for the pan must be taken from the wall studs. This method is required because the pan is installed before the tile backer board and final finished wall surfaces are applied. Therefore, measure the width from stud to stud, the depth from the stud face to the outside of the intended curb (dam), and the location of the drain centerline from the nearest wall studs.

Shower/Bathtub Doors

Before you start, make sure you're measuring from fully finished walls or surfaces where the tile thickness has already been accounted for. Do NOT measure from bare studs.

First, use a 4-foot carpenter's level to check that your walls are perfectly plumb (vertical) and your base is level.

Vertical Opening ("A" Measurement)
Measure from the top of the shower or bathtub threshold up to the top edge of your finished wall (tile or acrylic surround).

Horizontal Opening/Width ("B" Measurement)

To ensure the best fit, you must measure the width of the opening in three specific places:

  1. The Bottom
  2. The Middle
  3. The Top

Determining the Correct Width:

  • If measurements are the same: Congratulations! You can select any standard door size that matches your dimensions.
  • If measurements vary (Out of Plumb): If your walls are out of plumb or the measurements vary, you must use the smallest of your three measurements as the final width for ordering.
    • For example: If the top is 61 in, the middle is 60 in, and the bottom is 58 in, your correct width for ordering is 58 in.

Sill/Threshold Depth ("C" Measurement)
Measure the front-to-back depth of your shower or tub threshold.

Additional Considerations:

Stud Location: Most AquivaCoast® doors need to be anchored into wall studs for secure installation. Please check your wall structure during the installation process.

Clearance Height: Check that there’s enough overhead clearance to tilt and install the glass panels.

Required measurements vary by product. For additional help, visit our FAQs or contact our Customer Support Team.






Size: 24" x 72"

Ordered

Dec 16

Dispatched

Dec 17 - Dec 18

Delivered

Dec 20 - Dec 24

*Estimated delivery dates are based on business days and may vary.

Aquivacoast Free Replacement Logo

We understand that heavy glass and metal hardware can be fragile. For your peace of mind, should your items rarely arrive damaged, please follow the process below, and we'll provide a free replacement promptly at no extra cost.

Guaranteed Free Replacement Process

Please notify us of any damage or missing parts within 48 hours of delivery by contacting us through our Contact Page. If you notice any damage when the delivery driver is present, please refuse the delivery or record the damage on the delivery receipt. If you cannot inspect the shipment with the driver present but see damage to the boxes, please report it to us with photos of the original boxes before opening. This helps us understand how the damage occurred.

Our processes and materials are carefully designed with heavy-duty and weather-resistant packaging to minimize damage during storage and shipping. Damage is extremely rare, and most orders arrive in perfect condition. Should you find any damage to a product or part, we will promptly send you a replacement free of charge.

  • Tech support and parts to solve complicated installs
  • Dedicated service with guaranteed 24-hour replies
  • Factory direct prices are at least 25% cheaper
  • Damage-free promise replacement ships in 24-hour
  • Fast 3-7 day shipment from our US warehouse
  • 10-year manufactory limited warranty
Hinged Shower Door
24"/28"/30"/32"/34"/36" x 72"
5/16" Glass
Reversible Installation
180 Degree Outward
Soft-Close Hinge
3/8" Out-of-Plumb Adjustment

Product Specification

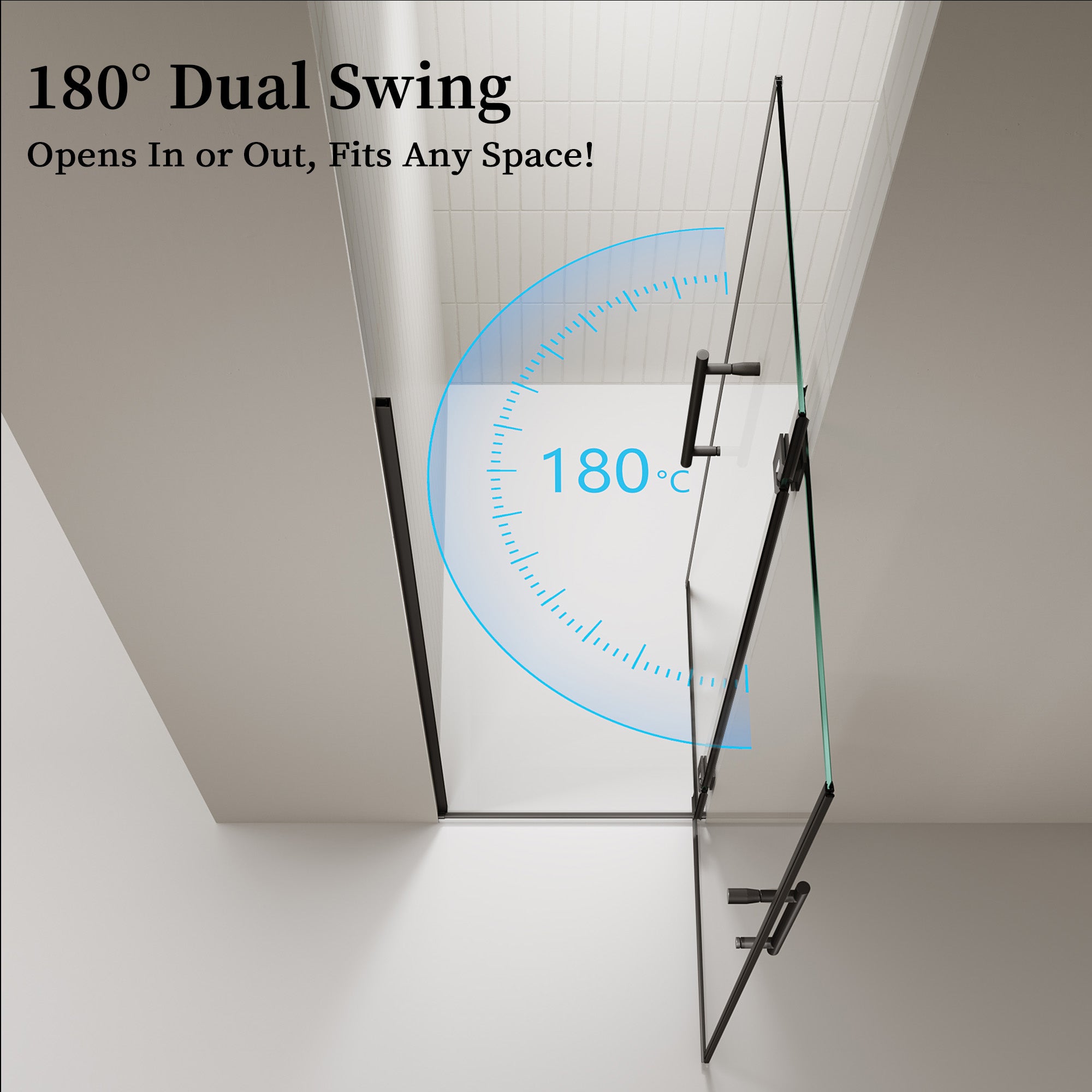

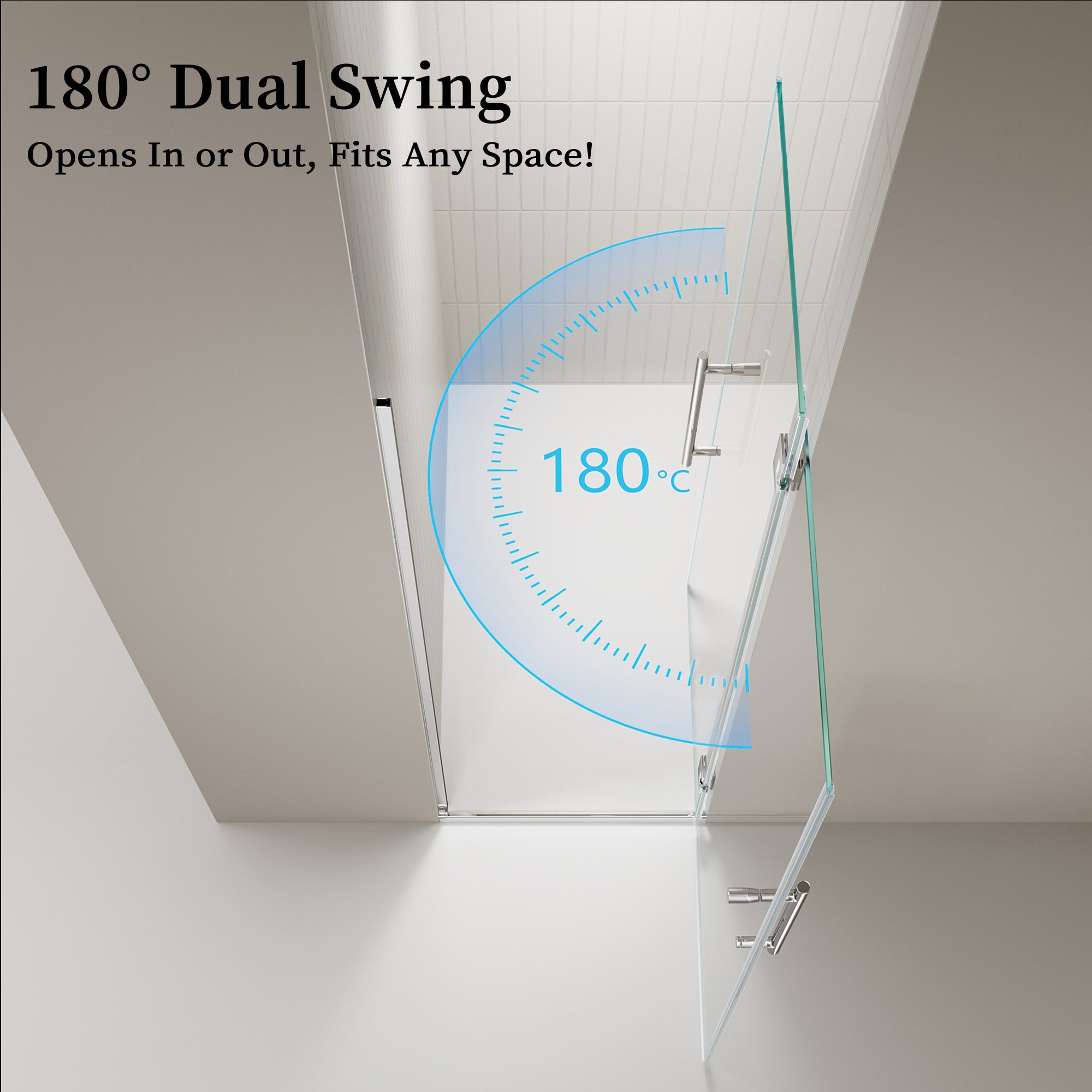

Flexible Swing Design: 180° inward and outward opening for easy access and space-saving layouts.

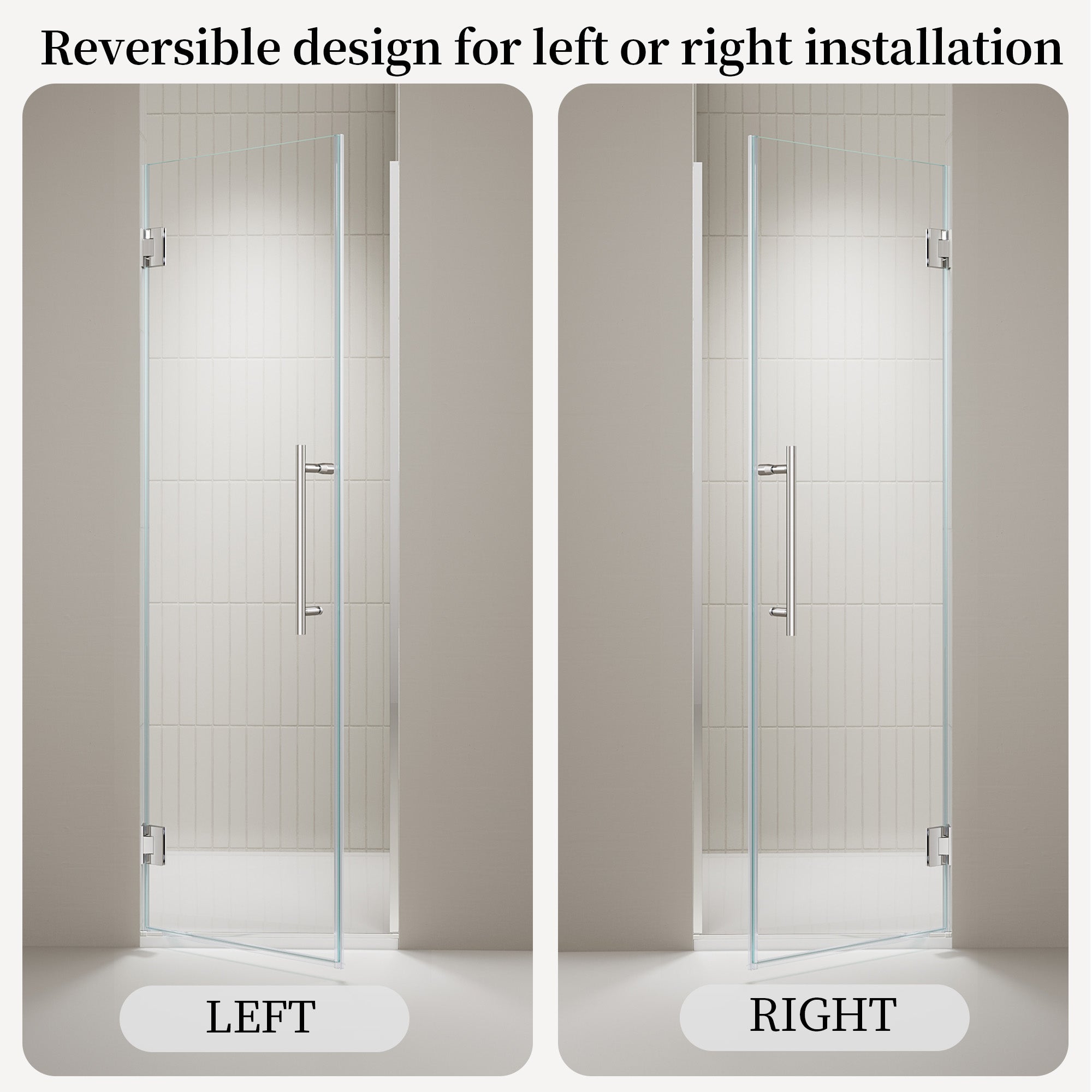

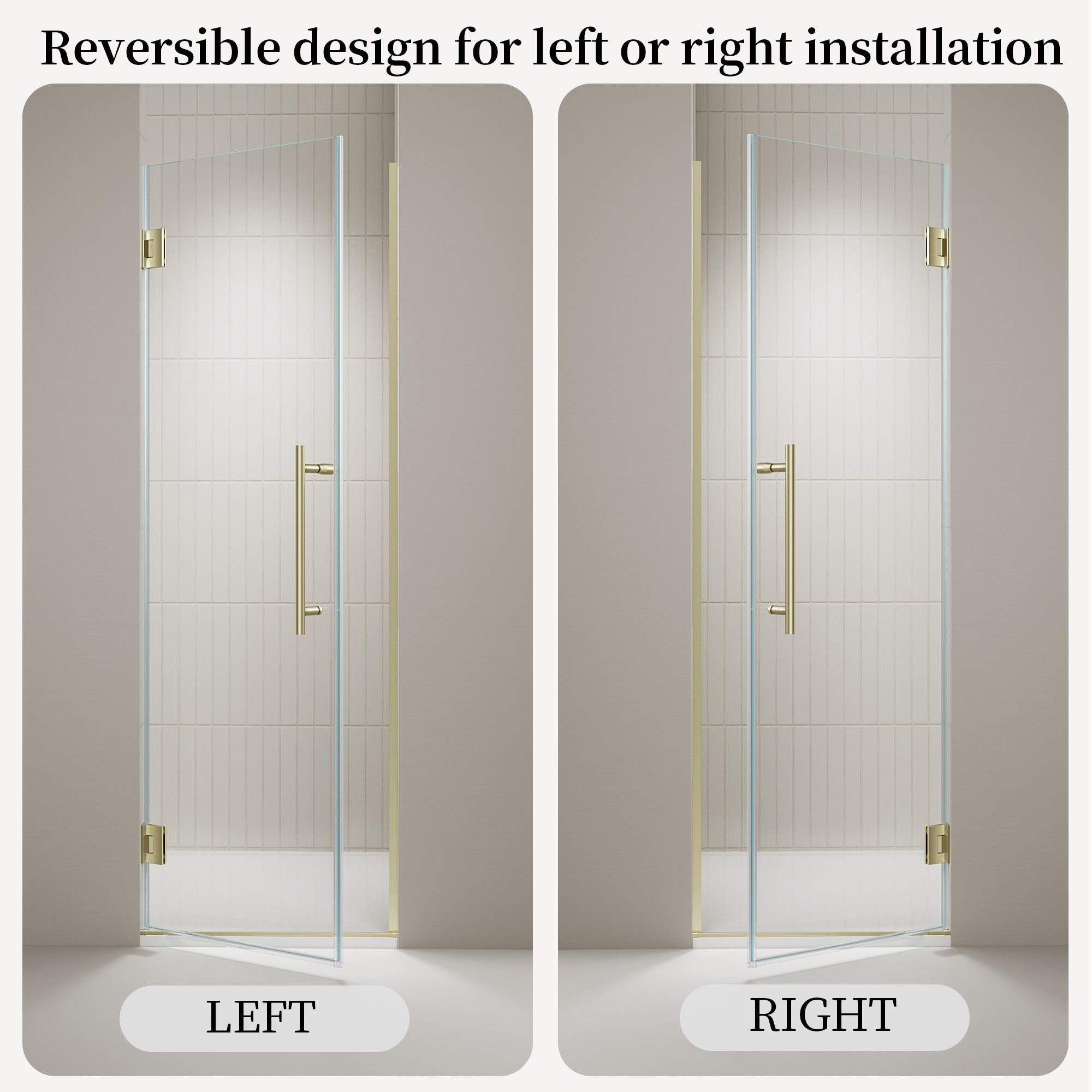

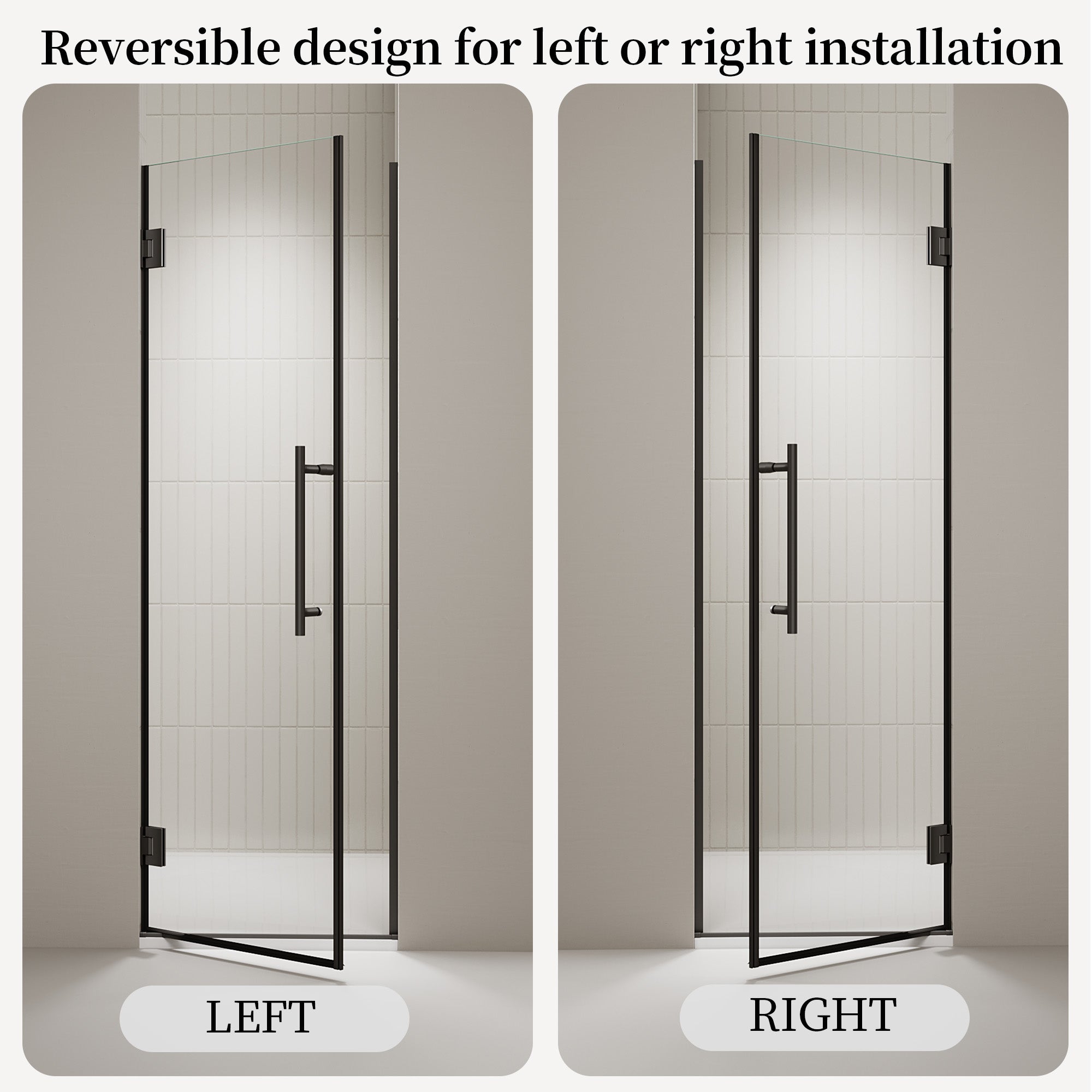

Reversible Installation: Hinges allow left- or right-side door opening to fit different bathroom layouts.

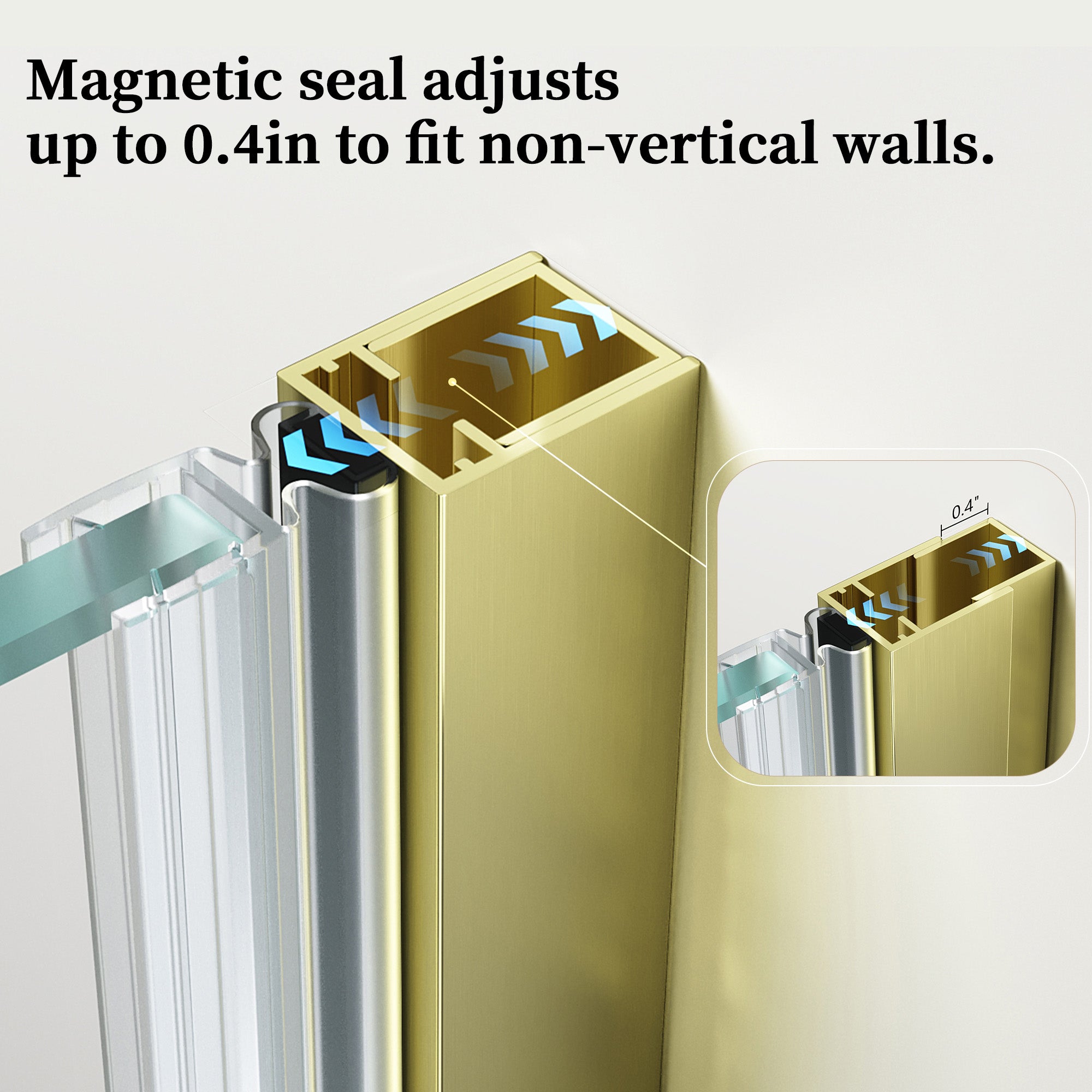

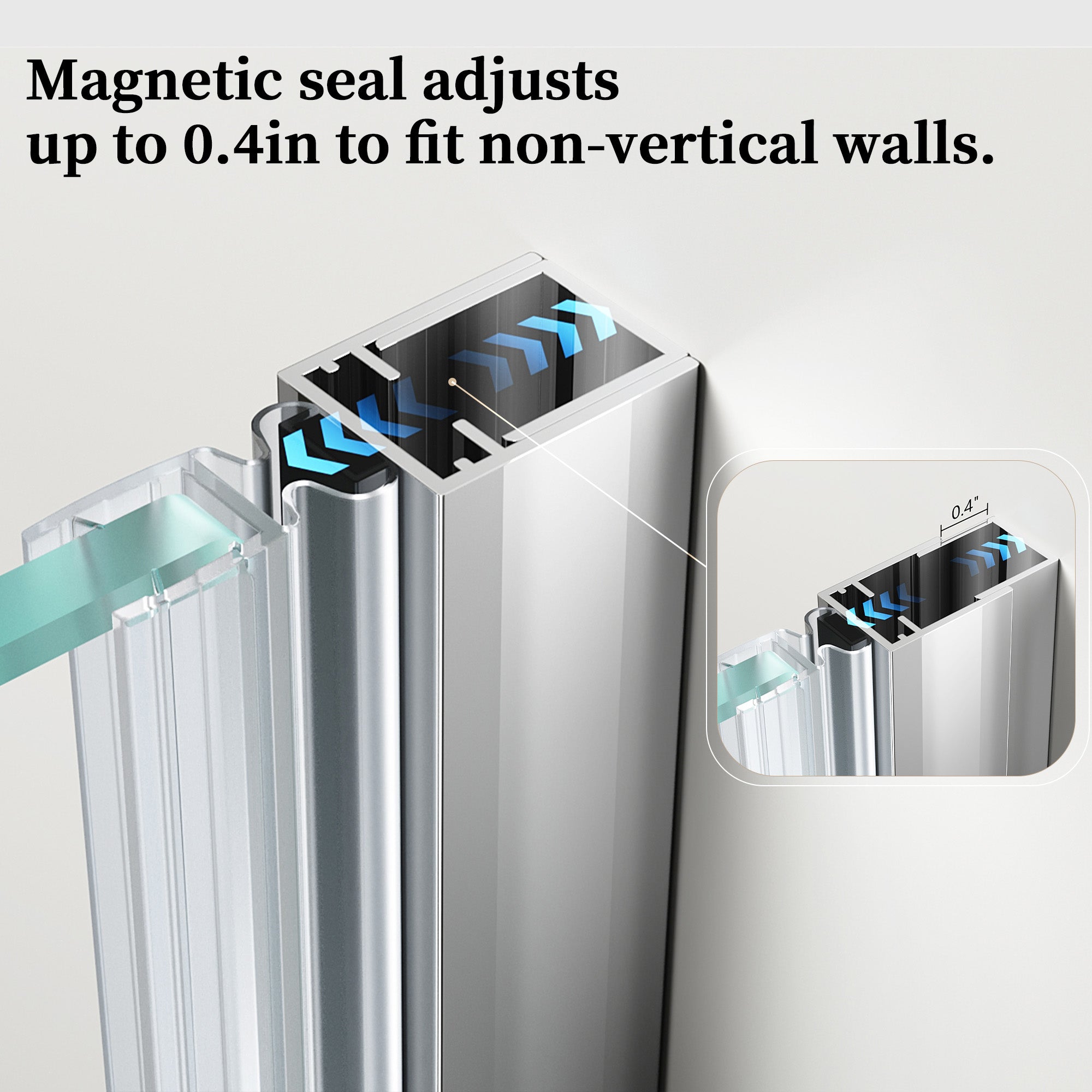

Adjustable Fit: Up to 5 mm (3/16") wall adjustment with a magnetic seal strip ensures a precise fit on slightly out-of-plumb walls — for example, allowing a 24-inch door to fit an opening between 23.9 inches and 24.1 inches.

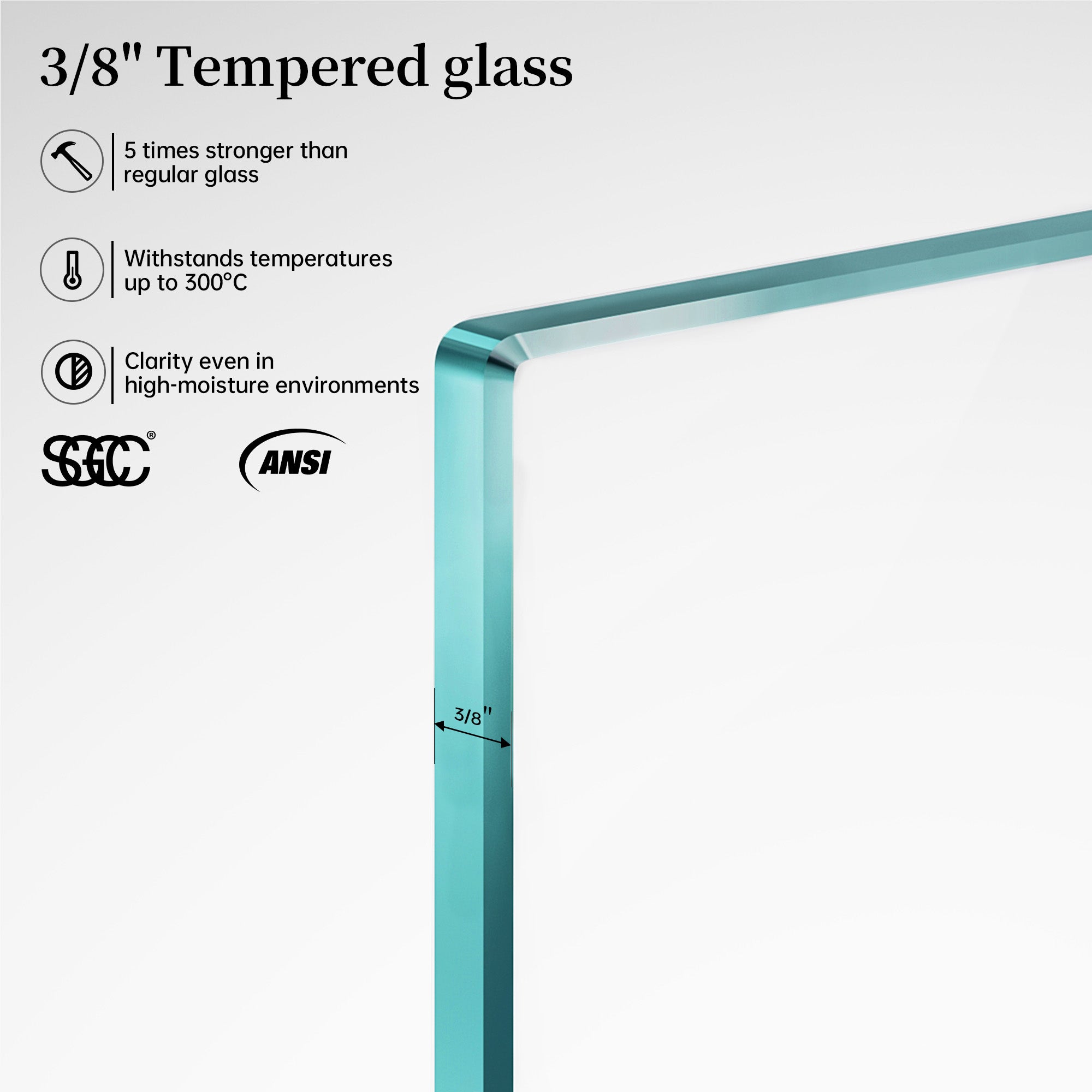

Certified Tempered Glass: 8mm (5/16") clear tempered glass, SGCC & ANSI certified, is durable, heat-, and scratch-resistant.

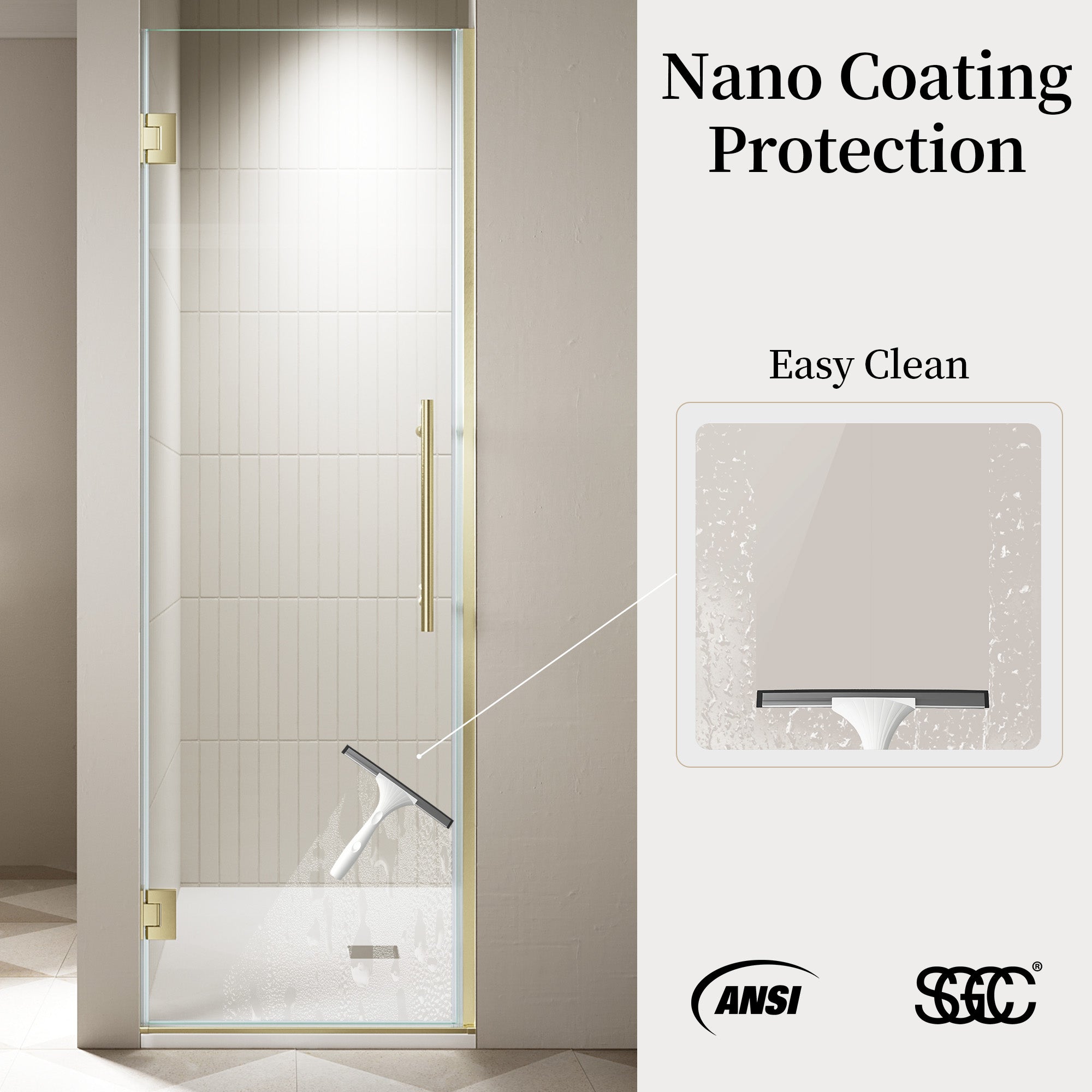

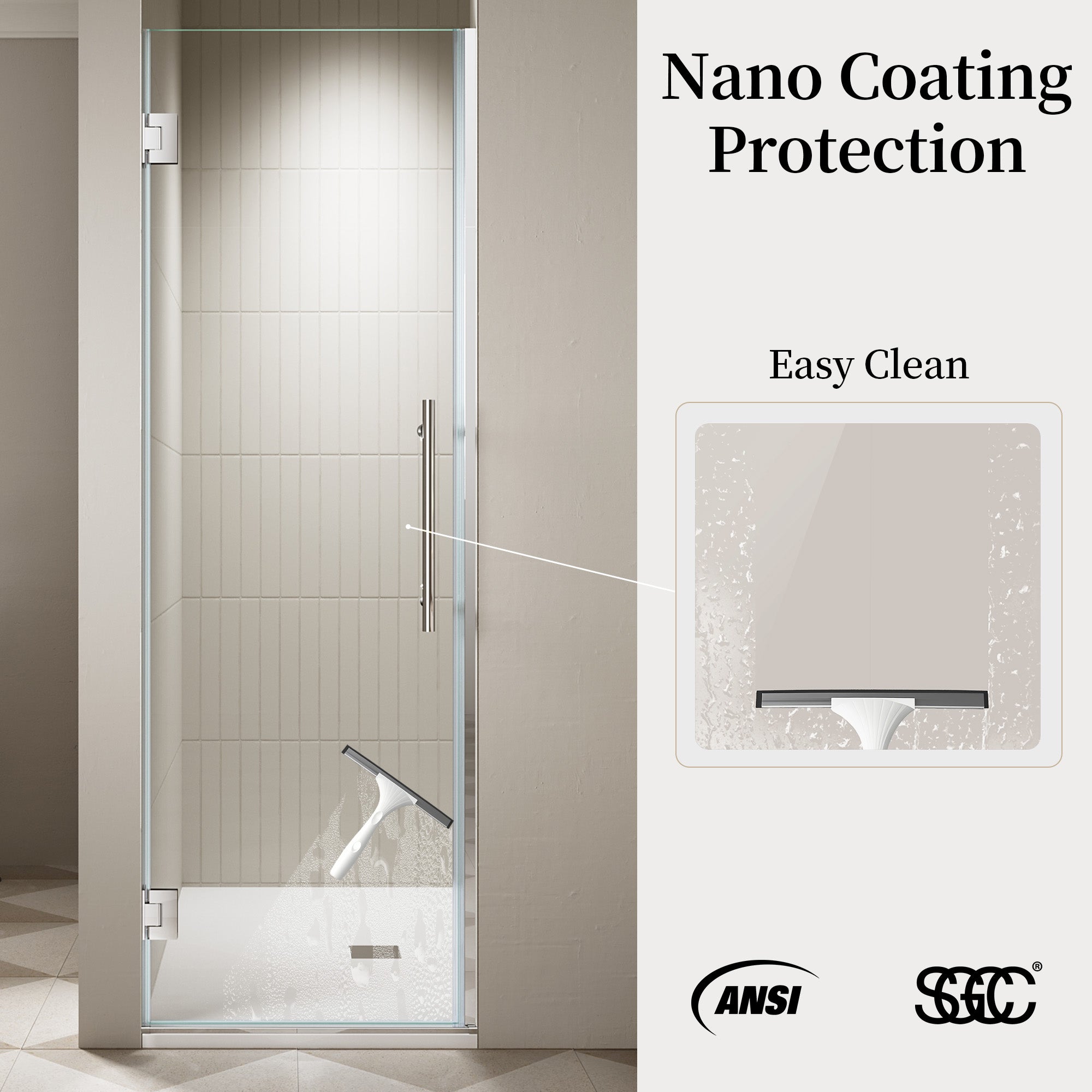

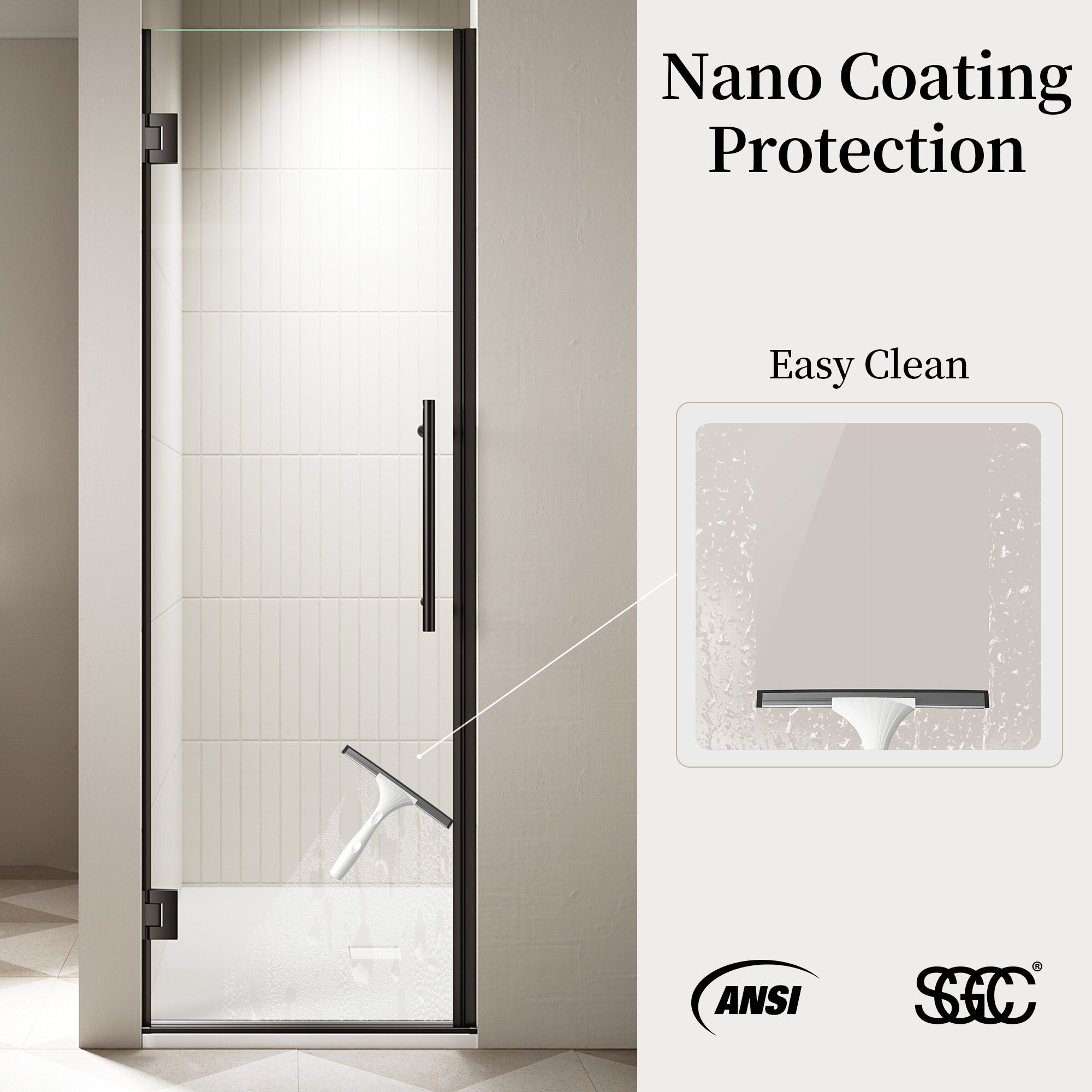

Easy-Clean Nano Coating: Repels water and stains, making cleaning quick and effortless.

Durable Hardware: Rust-resistant stainless steel hinges and a towel handle with a sleek, modern finish.

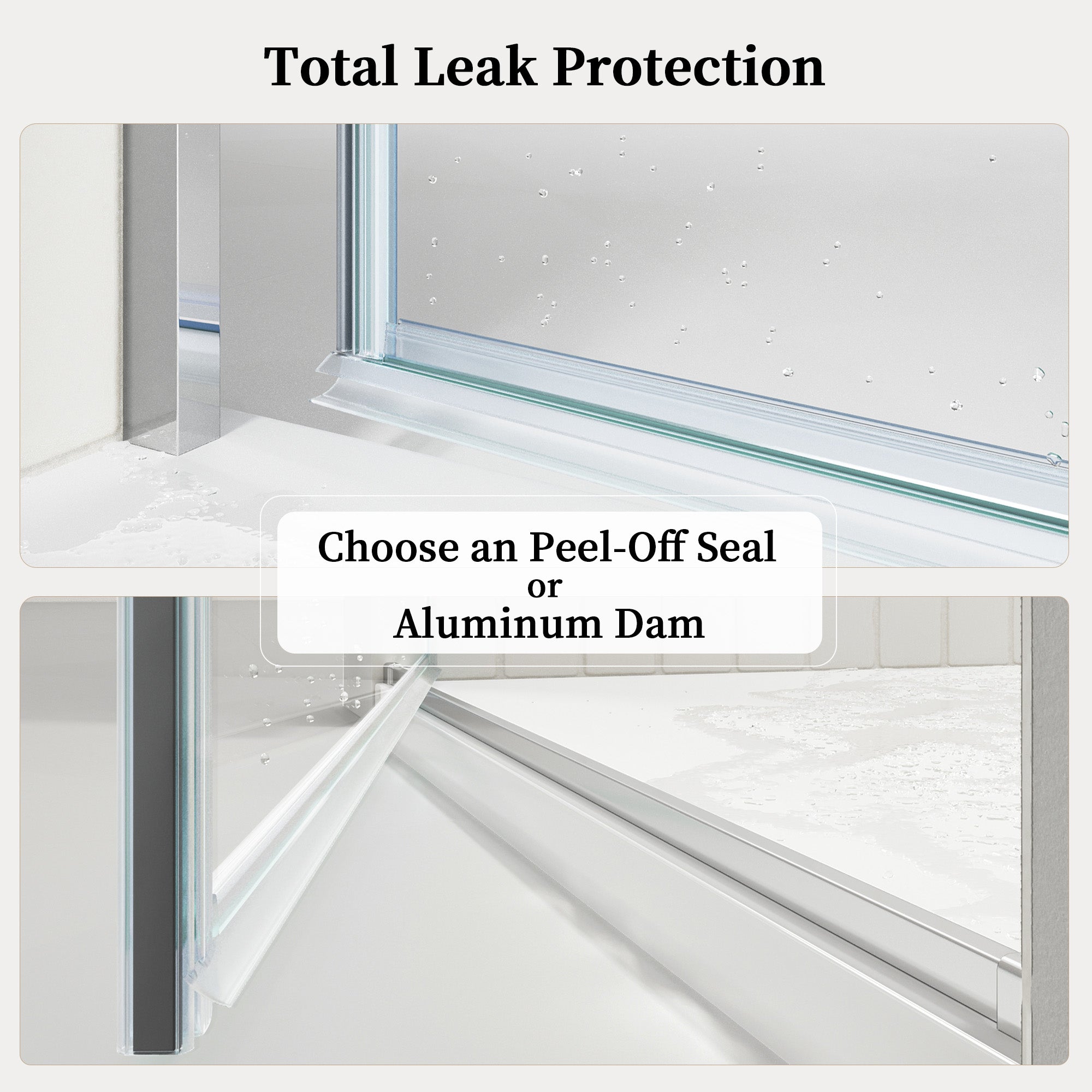

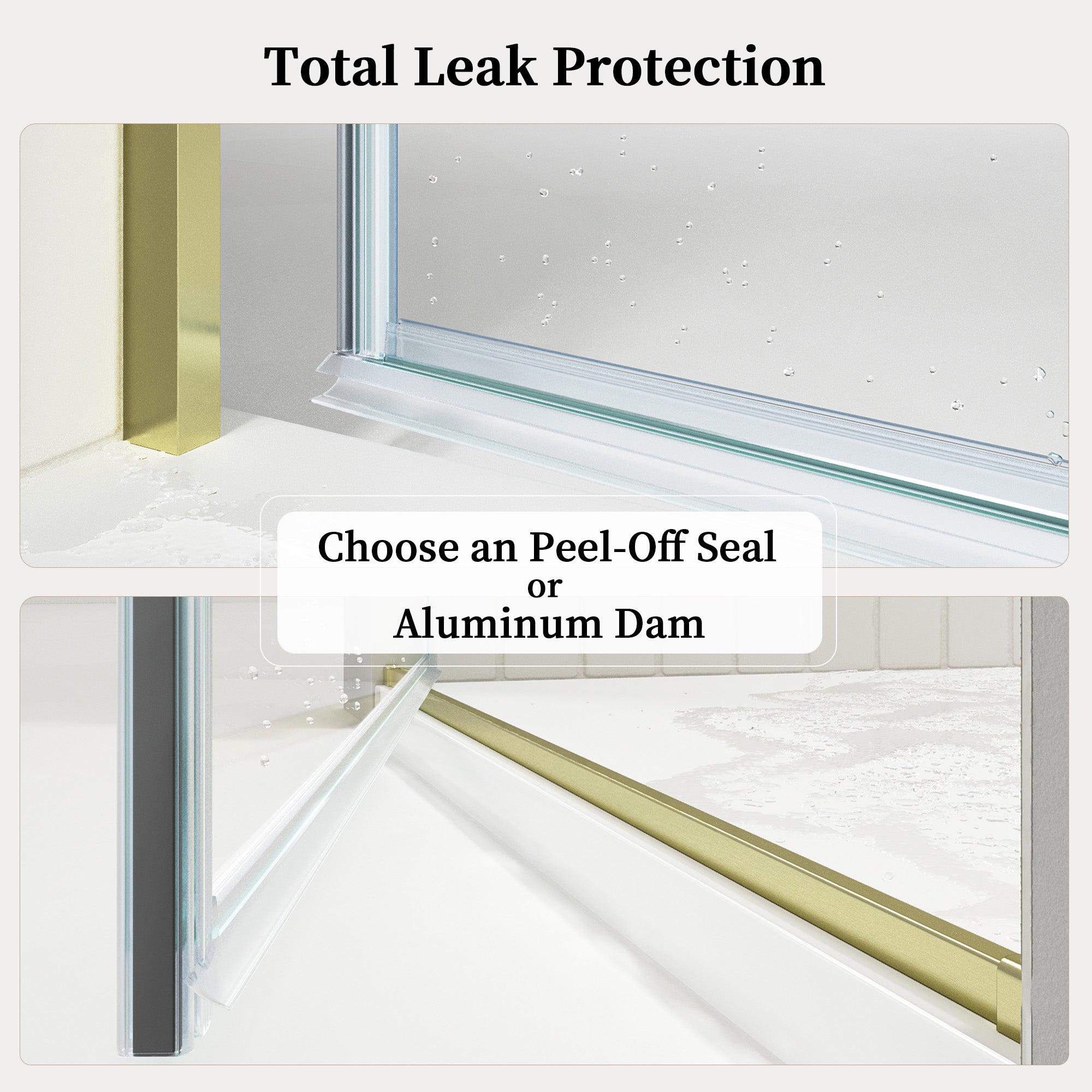

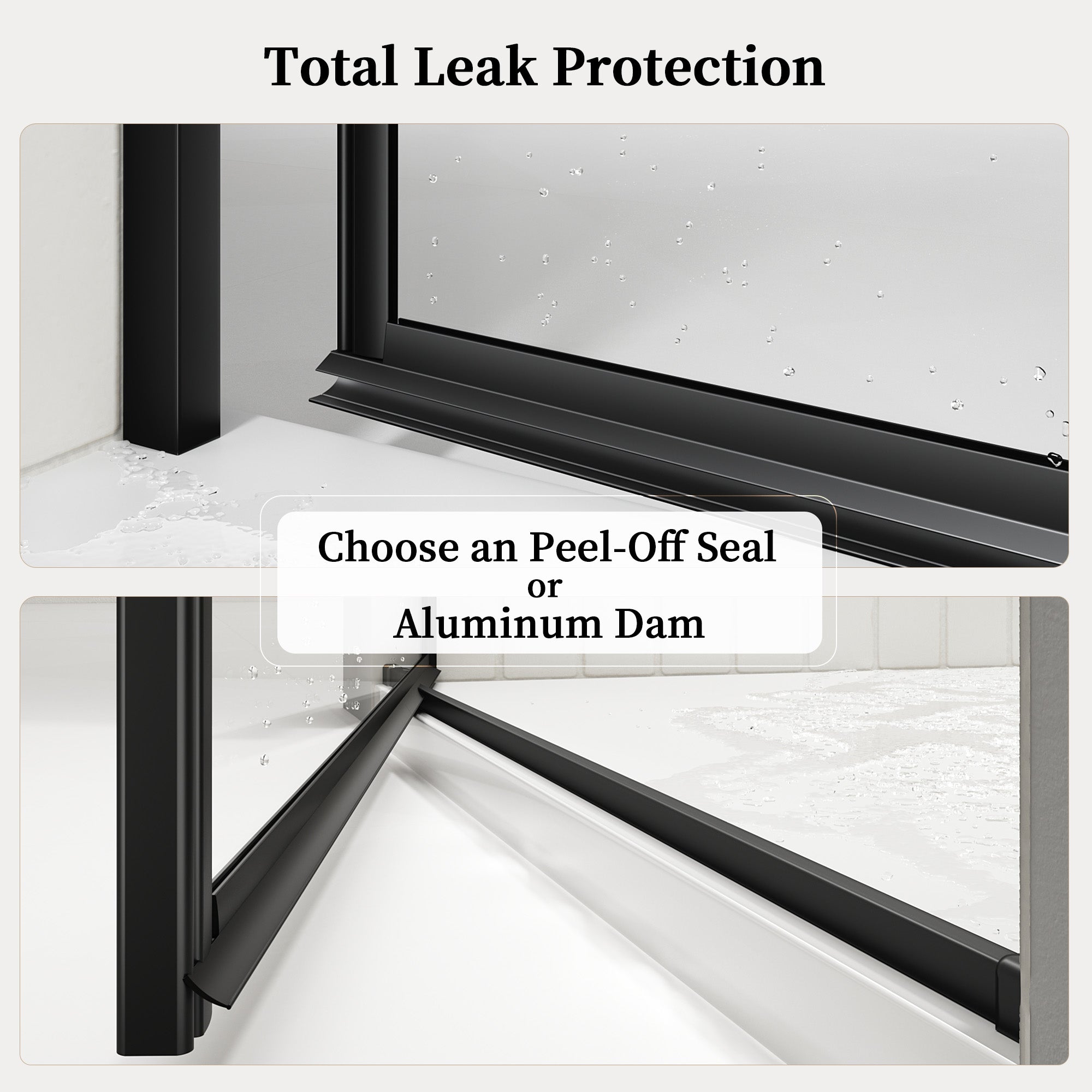

Leak-Proof Options: Includes both an aluminum bottom threshold and an adhesive seal strip for a flexible, watertight installation.

DIY-Friendly Package: Comes with a handle, hinges, clamps, seal strips, screws, and clear instructions; professional installation is recommended for the best results.

Series Name

Aurora

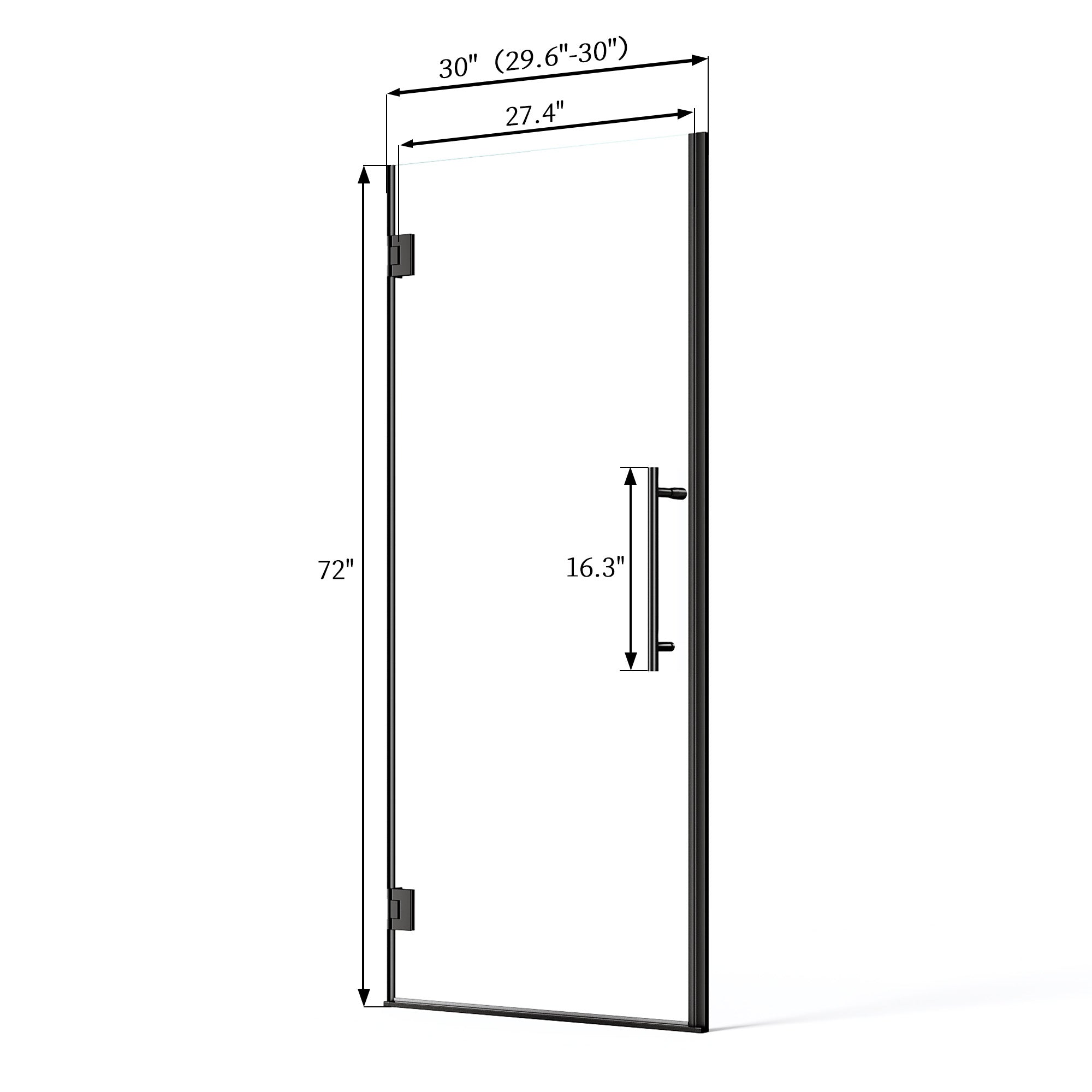

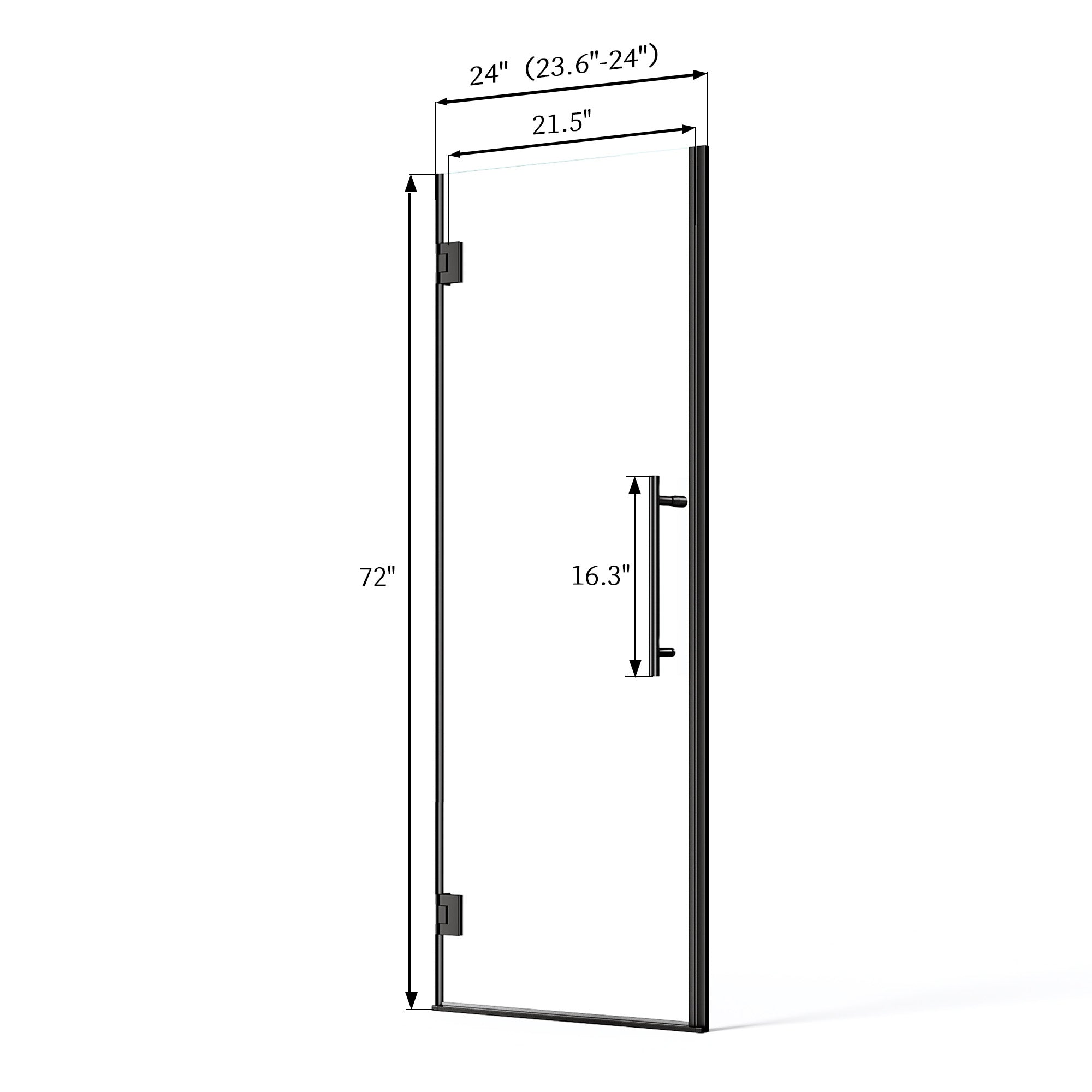

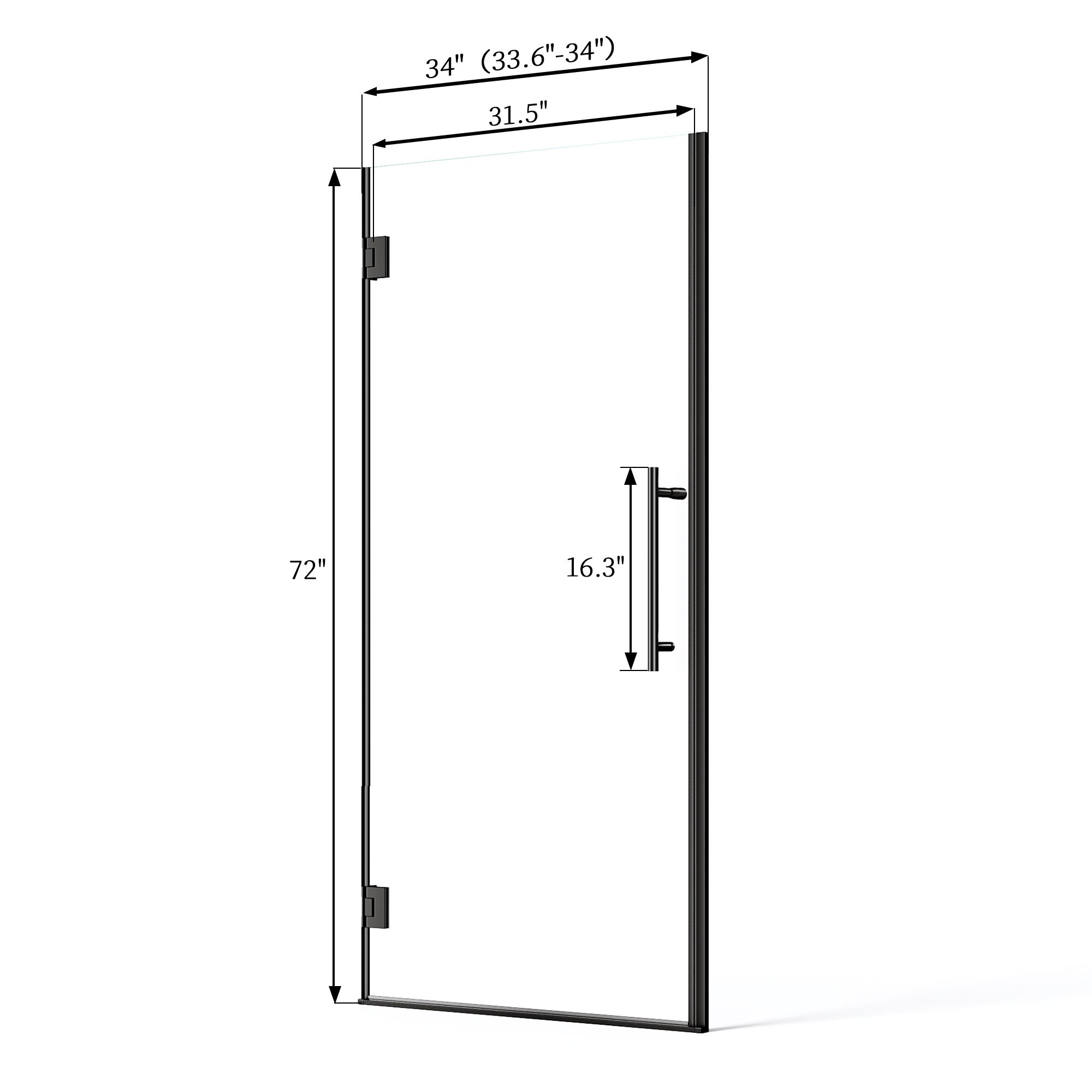

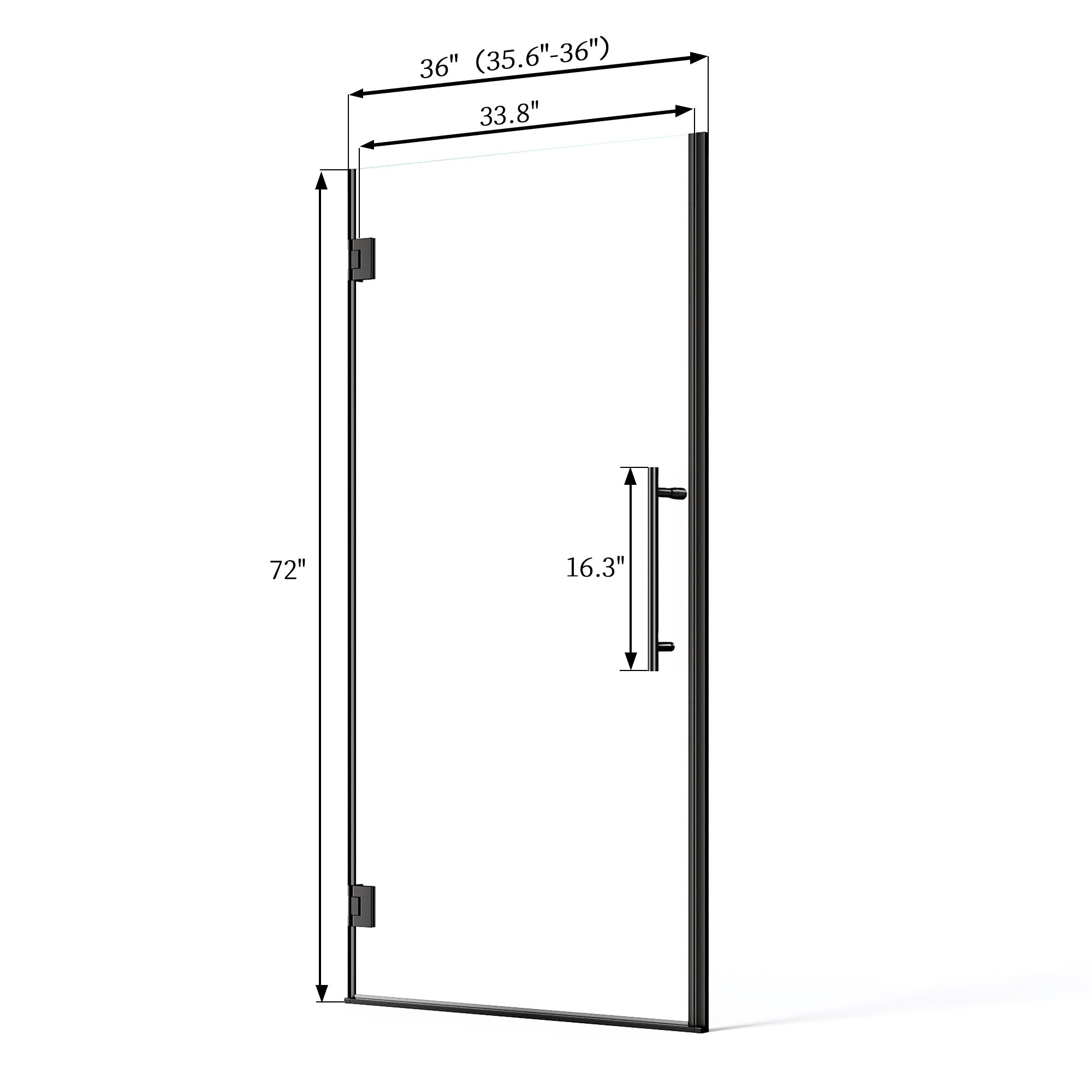

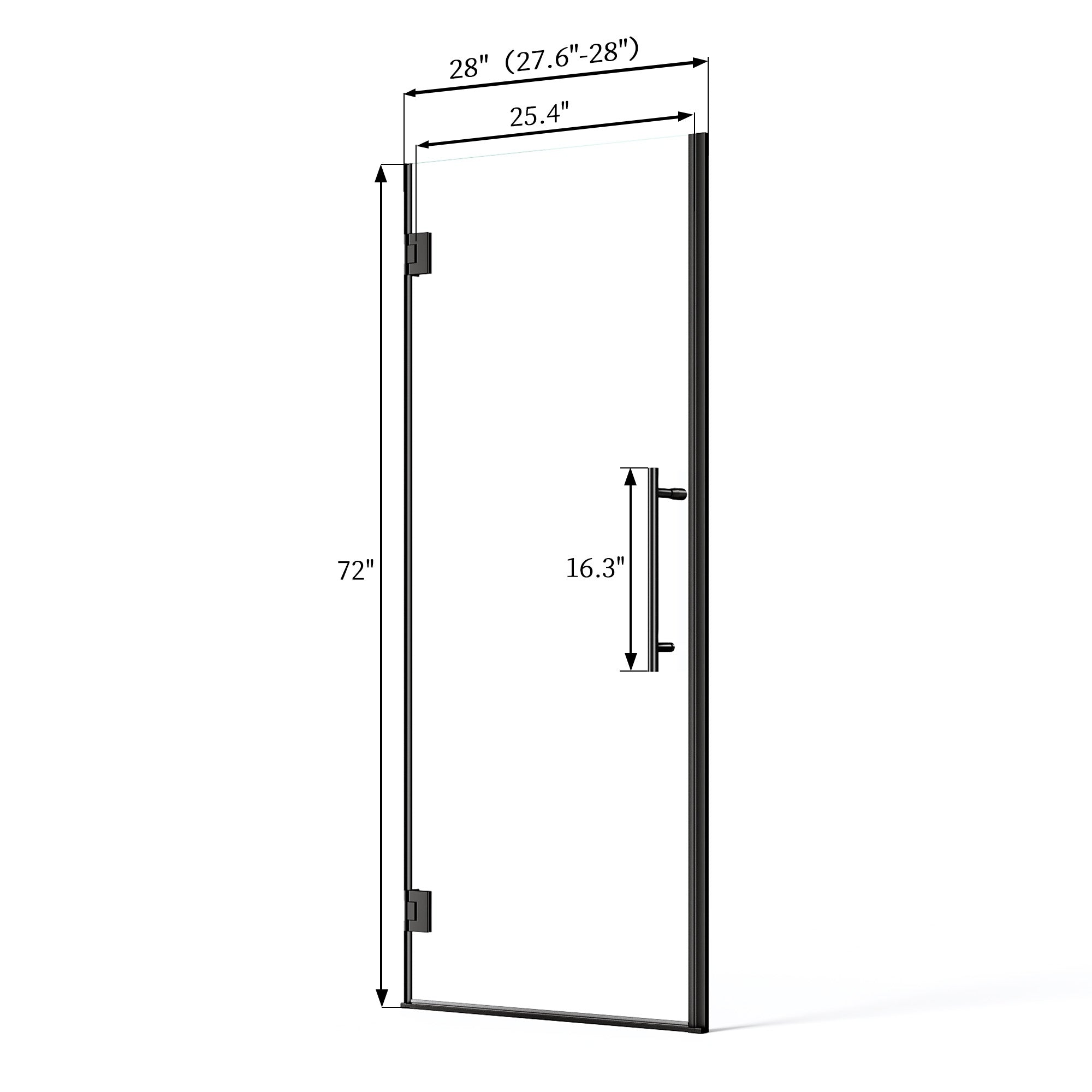

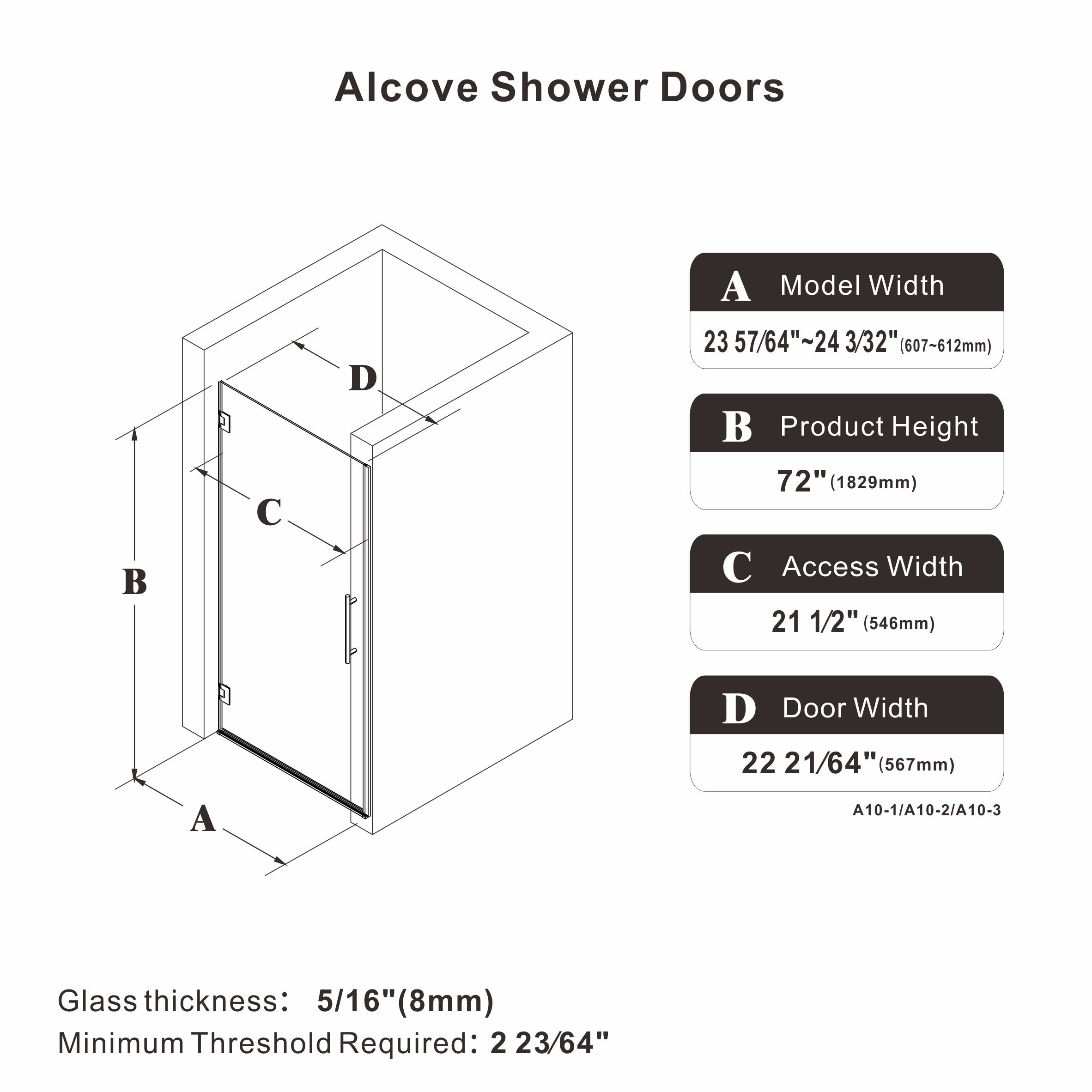

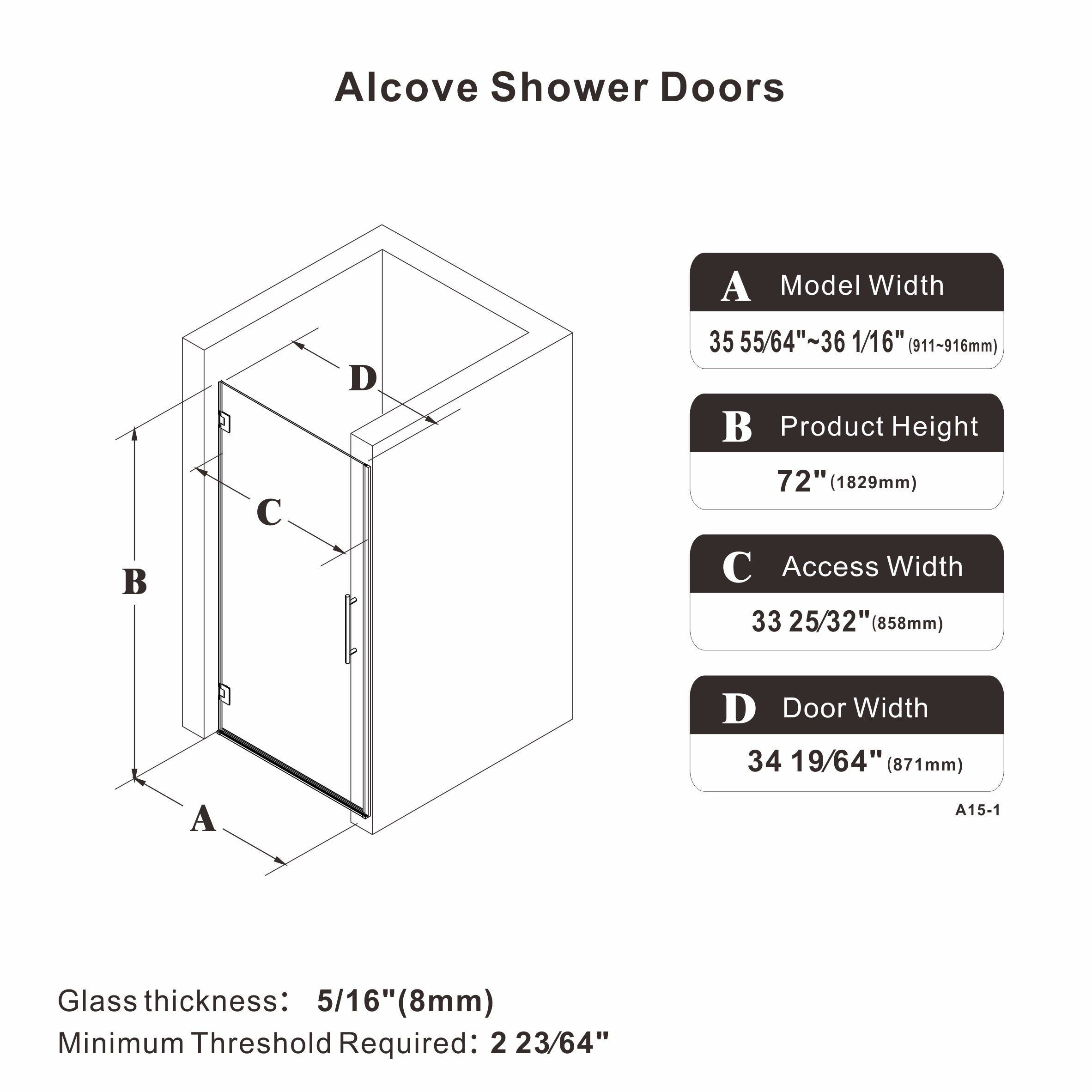

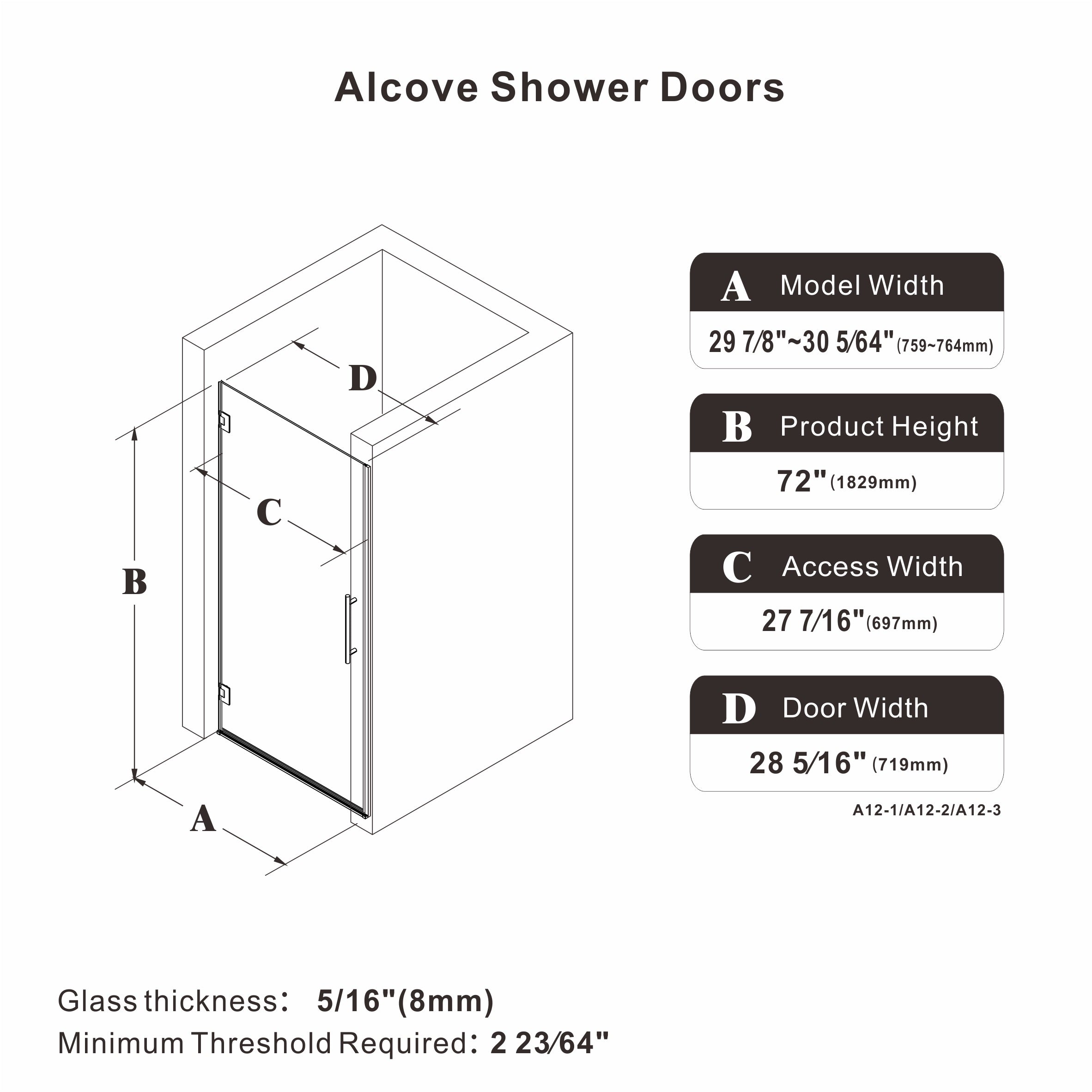

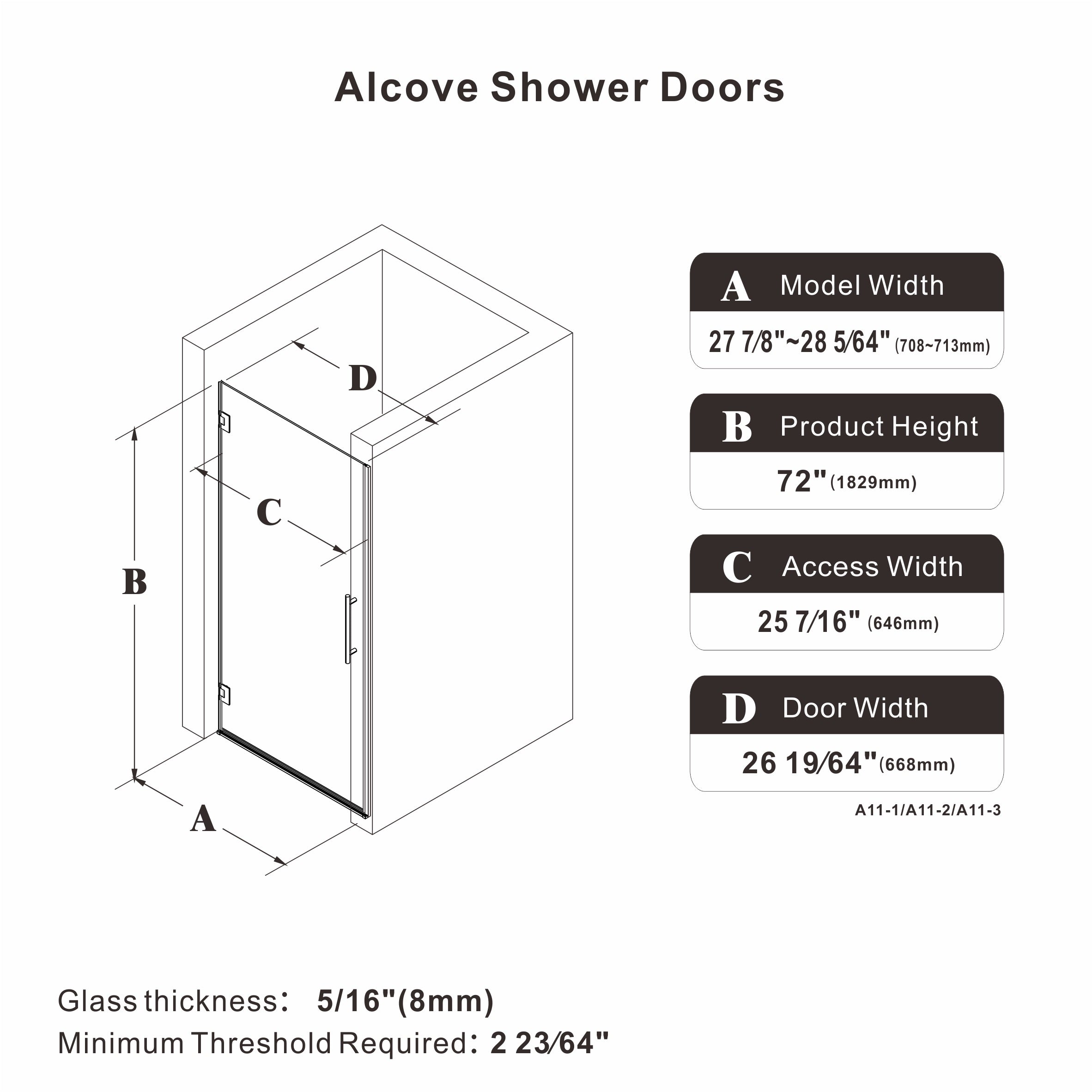

Dimensions
  • 23.9" - 24.1" Width x 72" Height
  • 27.9" - 28.1" Width x 72" Height
  • 29.9" - 30.1" Width x 72" Height
  • 31.9" - 32.1" Width x 72" Height
  • 35.9" - 36.1" Width x 72" Height
Glass

5/16"(8mm) Easy-Clean Clear Tempered Safety Glass

Frame Type

Frameless

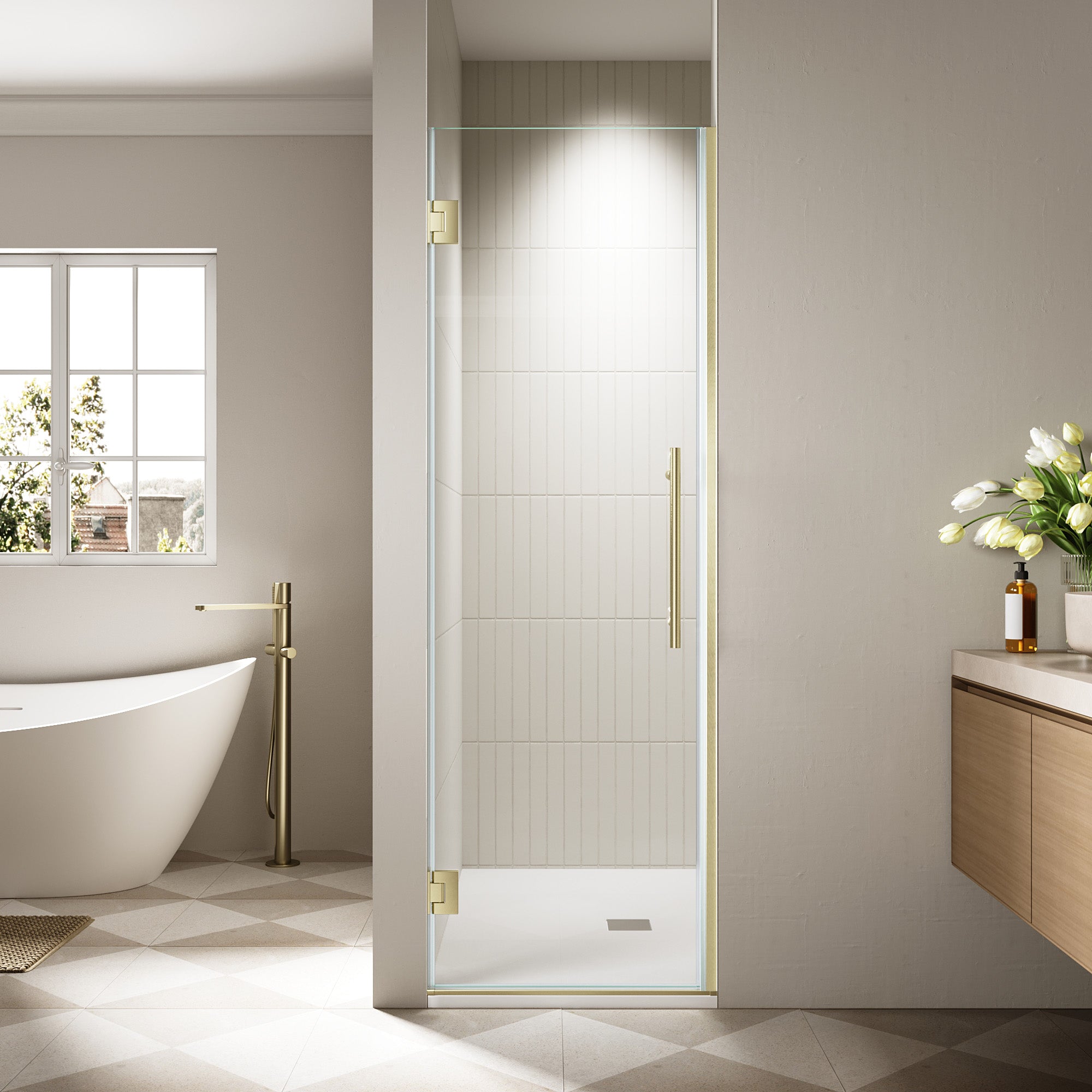

Finish Options

Matte Black / Brushed Gold / Chrome

Door Type

Hinged

Door Installation

Reversible

Frequent Asked Questions

If you have any additional questions, please submit a form, and we will respond within 24 hours.

Fast & Free U.S. Shipping

Your purchase delivered to you free of charge anywhere in the United States.

30-Day Money Back Guarantee

You can return the product within 30 days from the date of receipt, with no reason required.

10-Year Limited Warranty

We offer a 10-year limited warranty for all AquivaCoast Shower Doors.

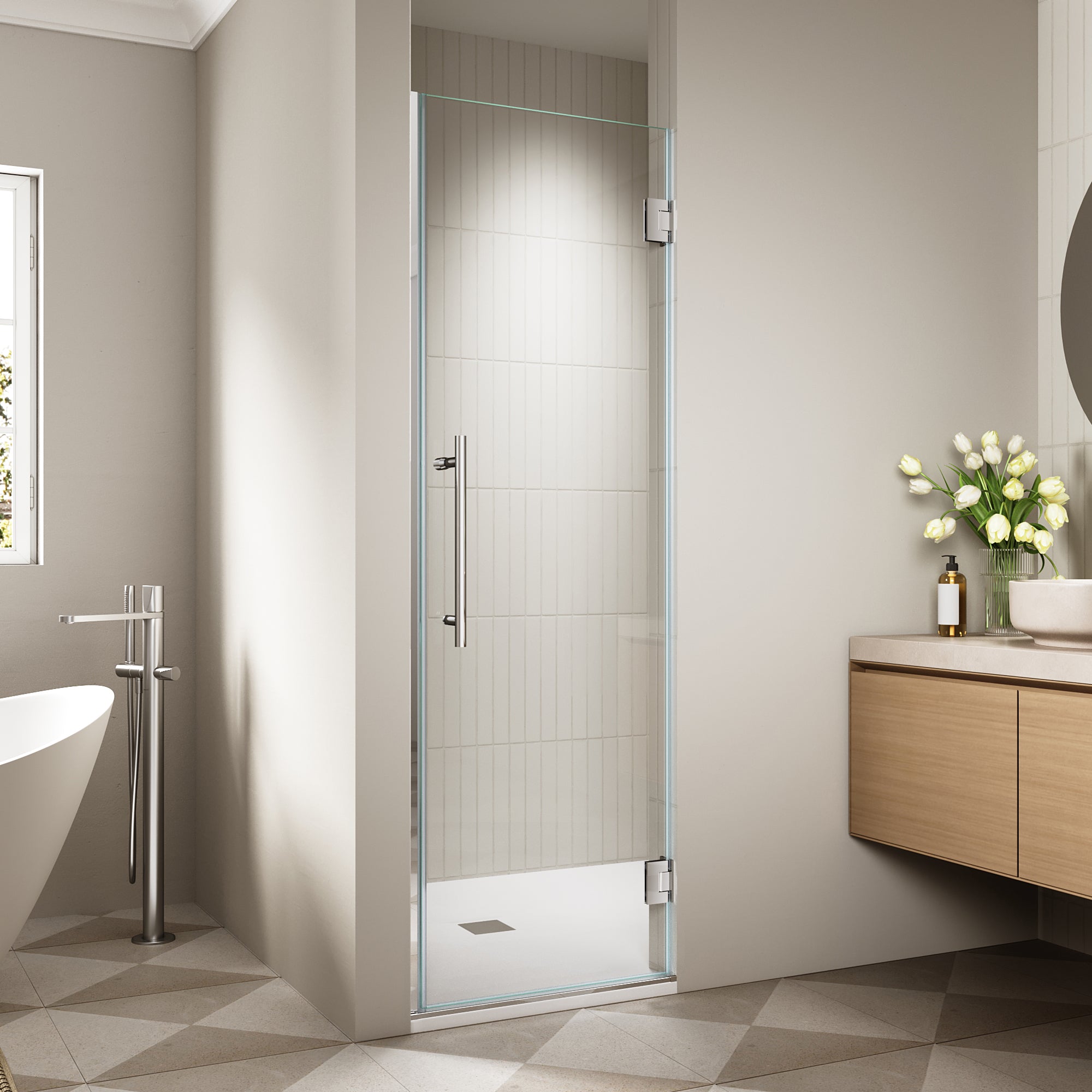

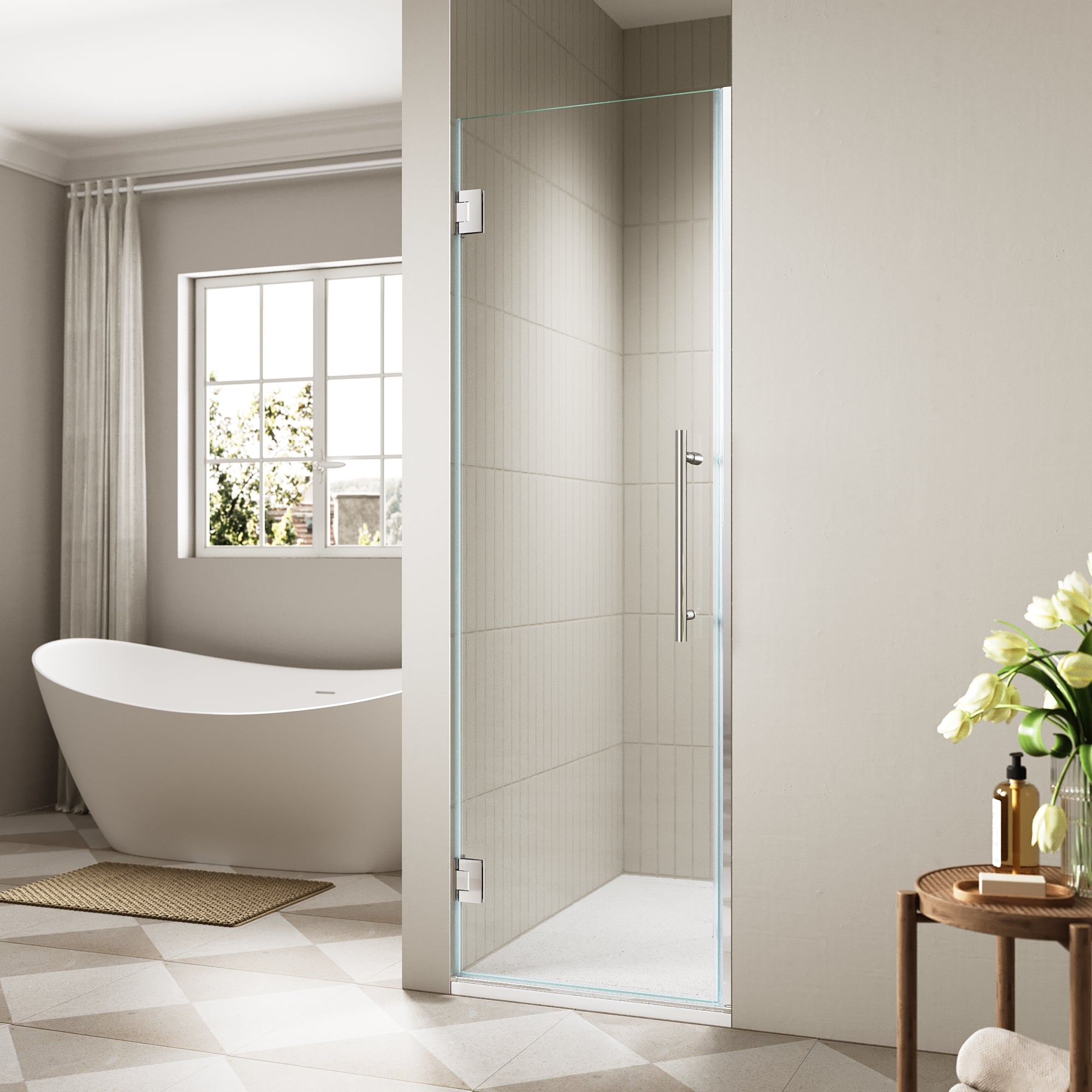

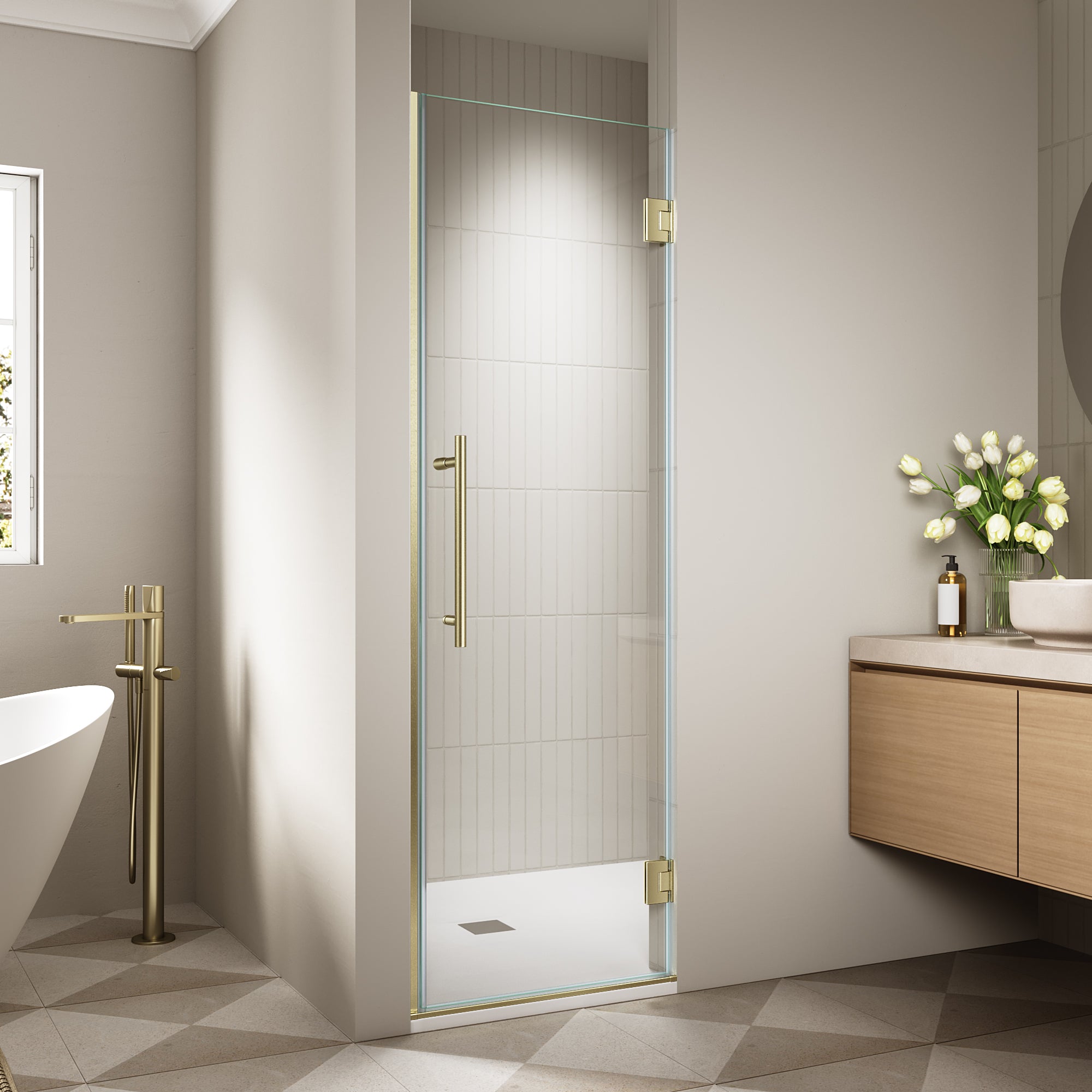

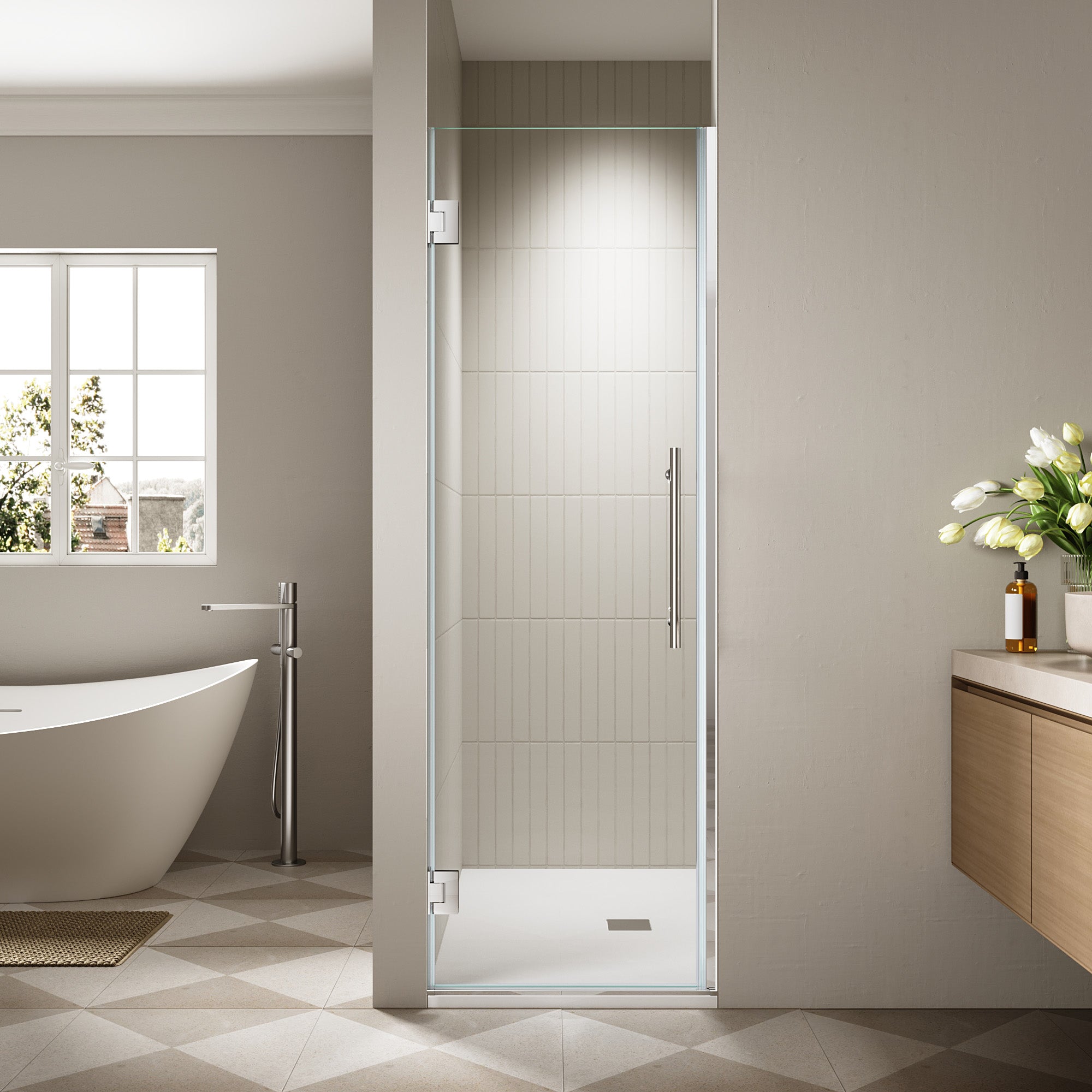

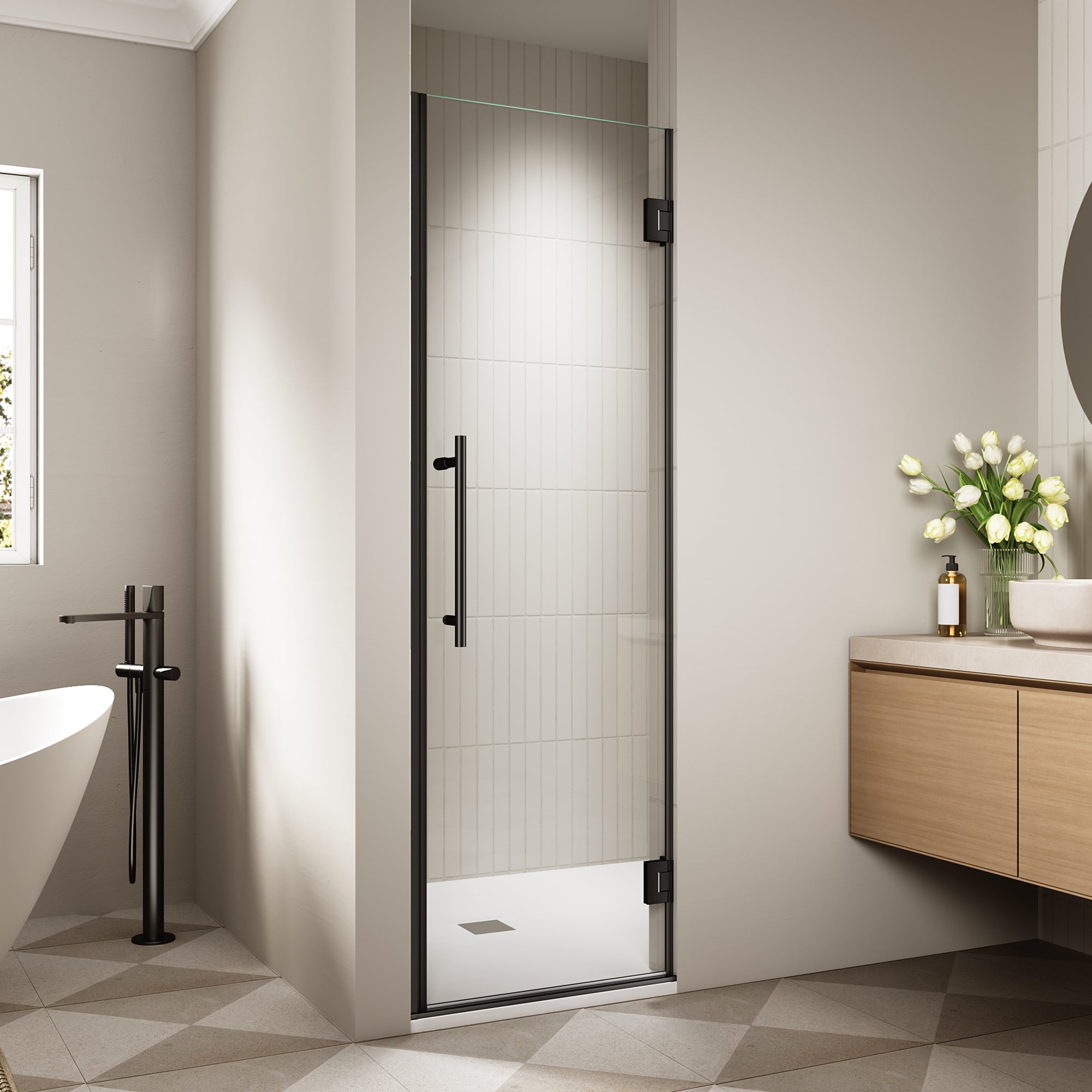

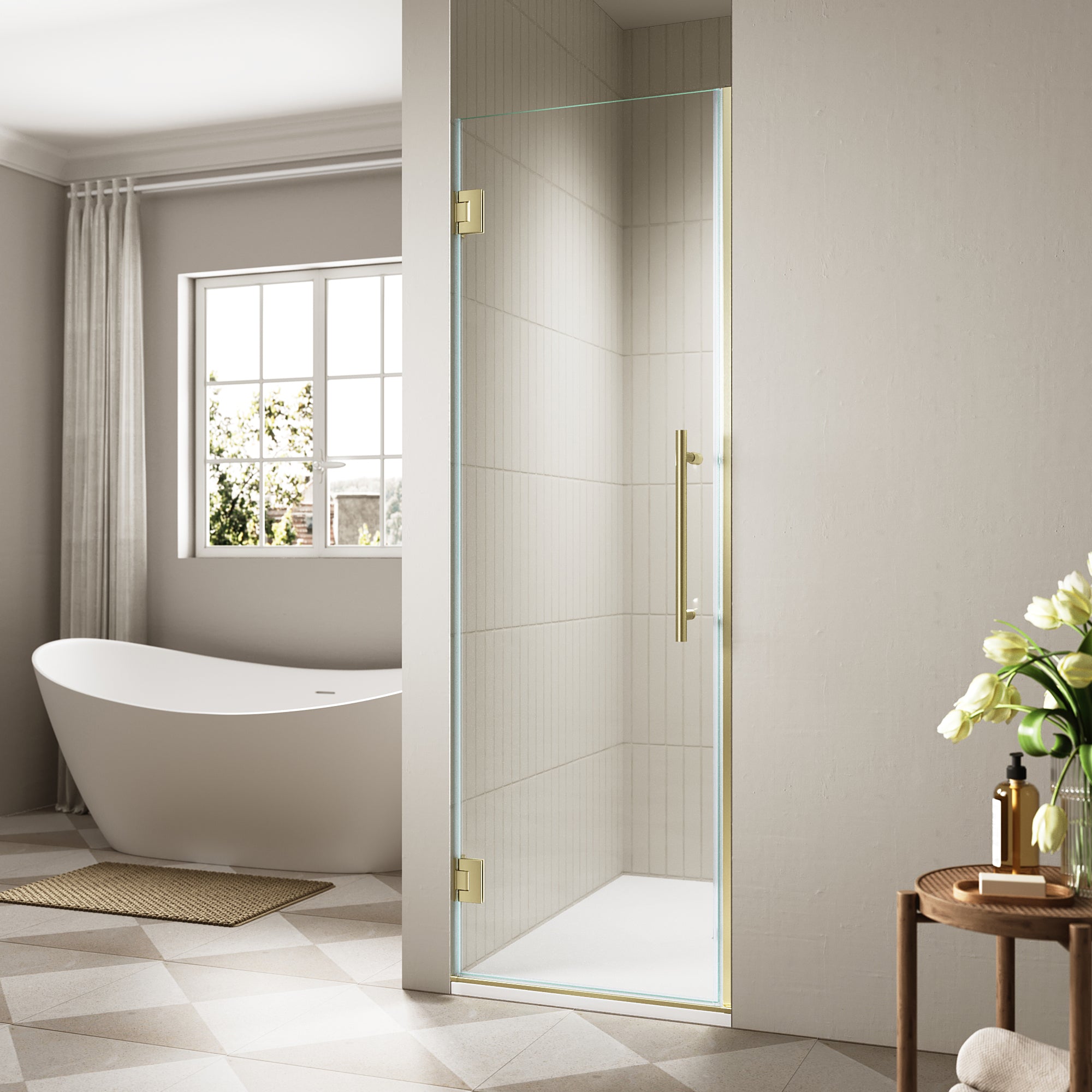

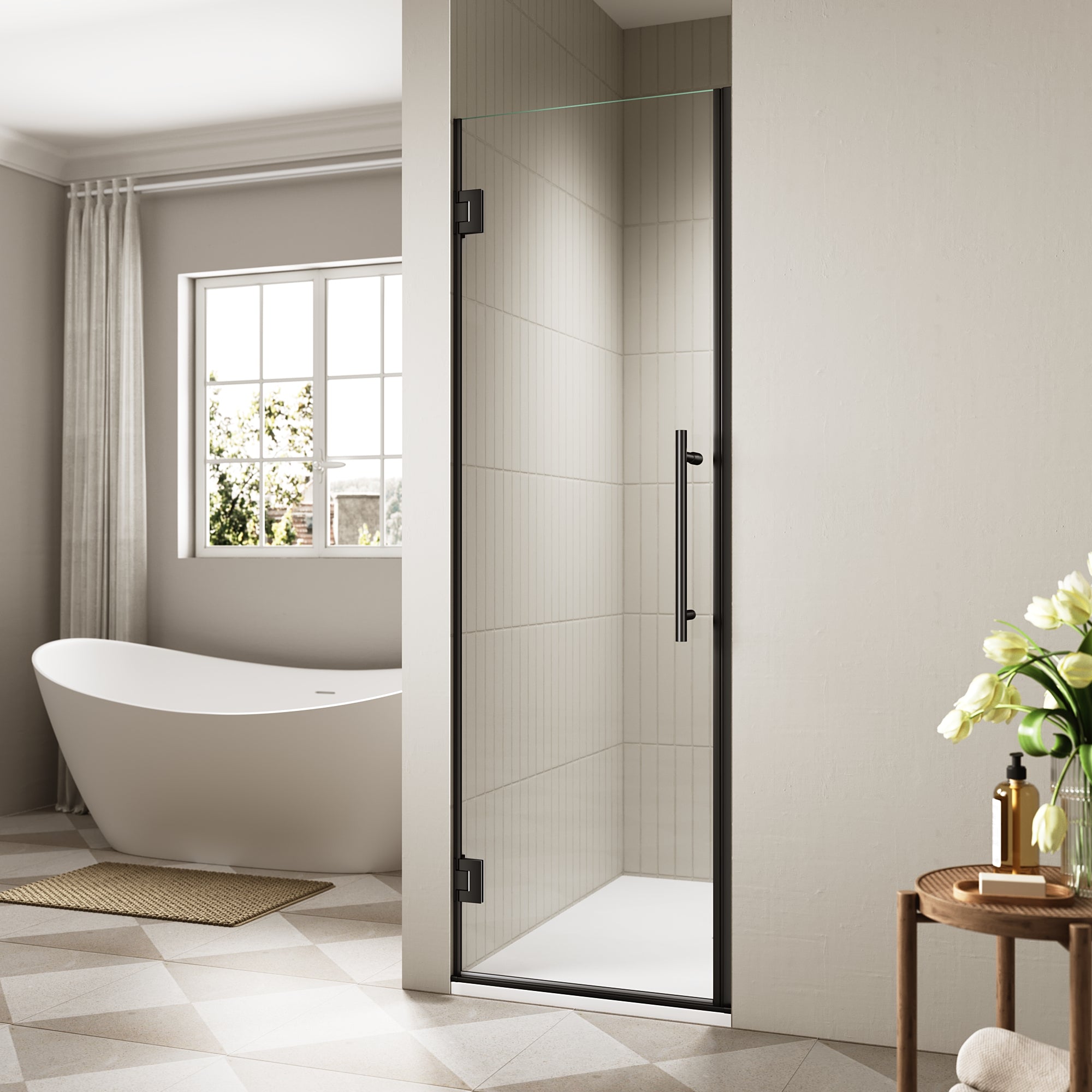

Step into the Elegance of Aurora

The frameless hinged shower door offers a modern, space-saving solution with its 180° inward and outward swing design. Available in 24"/28"/30"/32"/34"/36" width x 72" height, it is crafted from 5/16" (8 mm) clear tempered glass with an easy-clean nano coating for lasting clarity and durability. A rust-resistant stainless steel towel handle provides both style and functionality, while the adjustable wall profile (up to 5 mm) ensures a secure fit even on uneven walls. With dual water barrier options—a fixed aluminum threshold or an adhesive seal strip—this door delivers reliable leak protection and long-term performance.

24"/28"/30 W x 72" H Frameless Hinged Shower Door with 5/16" (8 mm) Easy-Clean Clear Tempered Glass and Towel Handle #Color_Matte Black

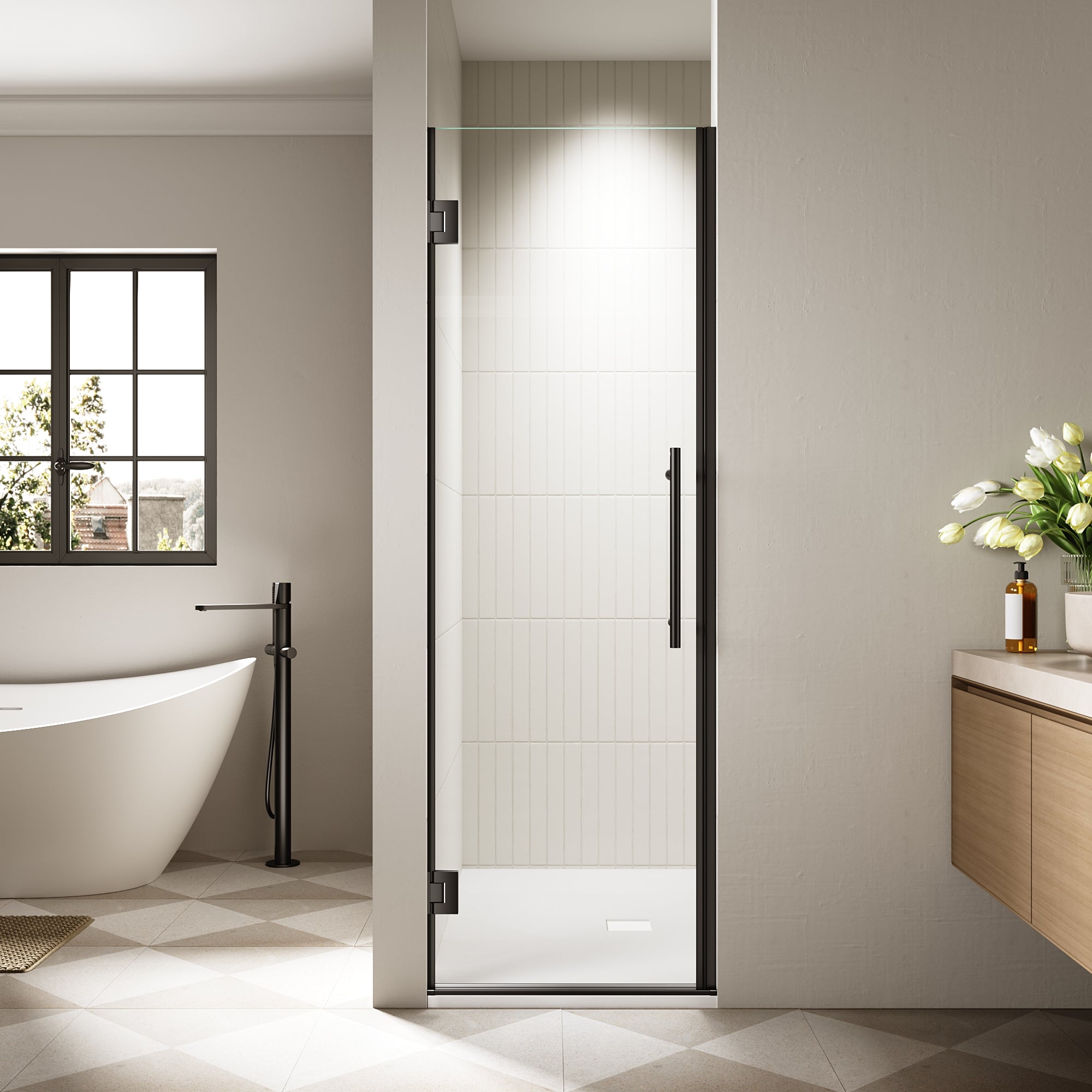

Modern & Flexible Design

The frameless single-panel door swings 180° inward and outward, saving space and allowing easy entry. Reversible hinges let you install it for either left- or right-hand opening, ensuring flexibility for different bathroom layouts.

24"/28"/30 W x 72" H Frameless Hinged Shower Door with 5/16" (8 mm) Easy-Clean Clear Tempered Glass and Towel Handle #Color_Matte Black

Premium Glass & Hardware

Constructed with 8 mm (5/16") SGCC & ANSI certified tempered glass, the door is strong, safe, and easy to maintain thanks to its nano coating. Rust-resistant stainless steel hinges and a towel handle add durability and a sleek finish.

24"/28"/30 W x 72" H Frameless Hinged Shower Door with 5/16" (8 mm) Easy-Clean Clear Tempered Glass and Towel Handle #Color_Matte Black

Adjustable & Leakproof Fit

The door offers up to 5 mm adjustment to accommodate out-of-plumb walls. Equipped with two bottom sealing options, a bottom aluminum threshold or an adhesive strip. You can choose either for effective water protection.
