Shower Door|Aurora A10-NB

24"/28"/32" W x 72" H Frameless Soft-Close Hinged Shower Door with 5/16" (8 mm) Clear Tempered Glass, Brushed Nickel

SKU: SWA6211-A10-NB

Sale price$269.00 Regular price$349.00
Save 23%
Finish: Brushed Nickel
AQUIVACOAST® MEASURING GUIDE

Shower Pans

Unlike the shower door measurements, which rely on fully finished surfaces, shower pan measurements are taken from the bare framing. All dimensions for the pan must be taken from the wall studs. This method is required because the pan is installed before the tile backer board and final finished wall surfaces are applied. Therefore, measure the width from stud to stud, the depth from the stud face to the outside of the intended curb (dam), and the location of the drain centerline from the nearest wall studs.

Shower/Bathtub Doors

Before you start, make sure you're measuring from fully finished walls or surfaces where the tile thickness has already been accounted for. Do NOT measure from bare studs.

First, use a 4-foot carpenter's level to check that your walls are perfectly plumb (vertical) and your base is level.

Vertical Opening ("A" Measurement)
Measure from the top of the shower or bathtub threshold up to the top edge of your finished wall (tile or acrylic surround).

Horizontal Opening/Width ("B" Measurement)

To ensure the best fit, you must measure the width of the opening in three specific places:

  1. The Bottom
  2. The Middle
  3. The Top

Determining the Correct Width:

  • If measurements are the same: Congratulations! You can select any standard door size that matches your dimensions.
  • If measurements vary (Out of Plumb): If your walls are out of plumb or the measurements vary, you must use the smallest of your three measurements as the final width for ordering.
    • For example: If the top is 61 in, the middle is 60 in, and the bottom is 58 in, your correct width for ordering is 58 in.

Sill/Threshold Depth ("C" Measurement)
Measure the front-to-back depth of your shower or tub threshold.

Additional Considerations:

Stud Location: Most AquivaCoast® doors need to be anchored into wall studs for secure installation. Please check your wall structure during the installation process.

Clearance Height: Check that there’s enough overhead clearance to tilt and install the glass panels.

Required measurements vary by product. For additional help, visit our FAQs or contact our Customer Support Team.






Size: 24" x 72"

Ordered

Dec 16

Dispatched

Dec 17 - Dec 18

Delivered

Dec 20 - Dec 24

*Estimated delivery dates are based on business days and may vary.

Aquivacoast Free Replacement Logo

We understand that heavy glass and metal hardware can be fragile. For your peace of mind, should your items rarely arrive damaged, please follow the process below, and we'll provide a free replacement promptly at no extra cost.

Guaranteed Free Replacement Process

Please notify us of any damage or missing parts within 48 hours of delivery by contacting us through our Contact Page. If you notice any damage when the delivery driver is present, please refuse the delivery or record the damage on the delivery receipt. If you cannot inspect the shipment with the driver present but see damage to the boxes, please report it to us with photos of the original boxes before opening. This helps us understand how the damage occurred.

Our processes and materials are carefully designed with heavy-duty and weather-resistant packaging to minimize damage during storage and shipping. Damage is extremely rare, and most orders arrive in perfect condition. Should you find any damage to a product or part, we will promptly send you a replacement free of charge.

  • Tech support and parts to solve complicated installs
  • Dedicated service with guaranteed 24-hour replies
  • Factory direct prices are at least 25% cheaper
  • Damage-free promise replacement ships in 24-hour
  • Fast 3-7 day shipment from our US warehouse
  • 10-year manufactory limited warranty
Hinged Shower Door
24"/28"/32" x 72"
5/16" Glass
Reversible Installation
90 Degree Outward
Soft-Close Hinge
Fixed Width

Product Specification

No Water Spillage: Effective magnetic seal prevents water from leaking out, keeping your bathroom floor dry.

Durable and Reliable: Constructed with 5/16" (8mm) thick tempered glass and corrosion-resistant hardware for long-lasting performance.

Safety Compliant: Meets ANSI Z97.1 and 16 CFR 1201 II safety standards for added peace of mind.

Flexibility for Installation: Reversible installation accommodates both left and right side openings to suit your unique bathroom layout.

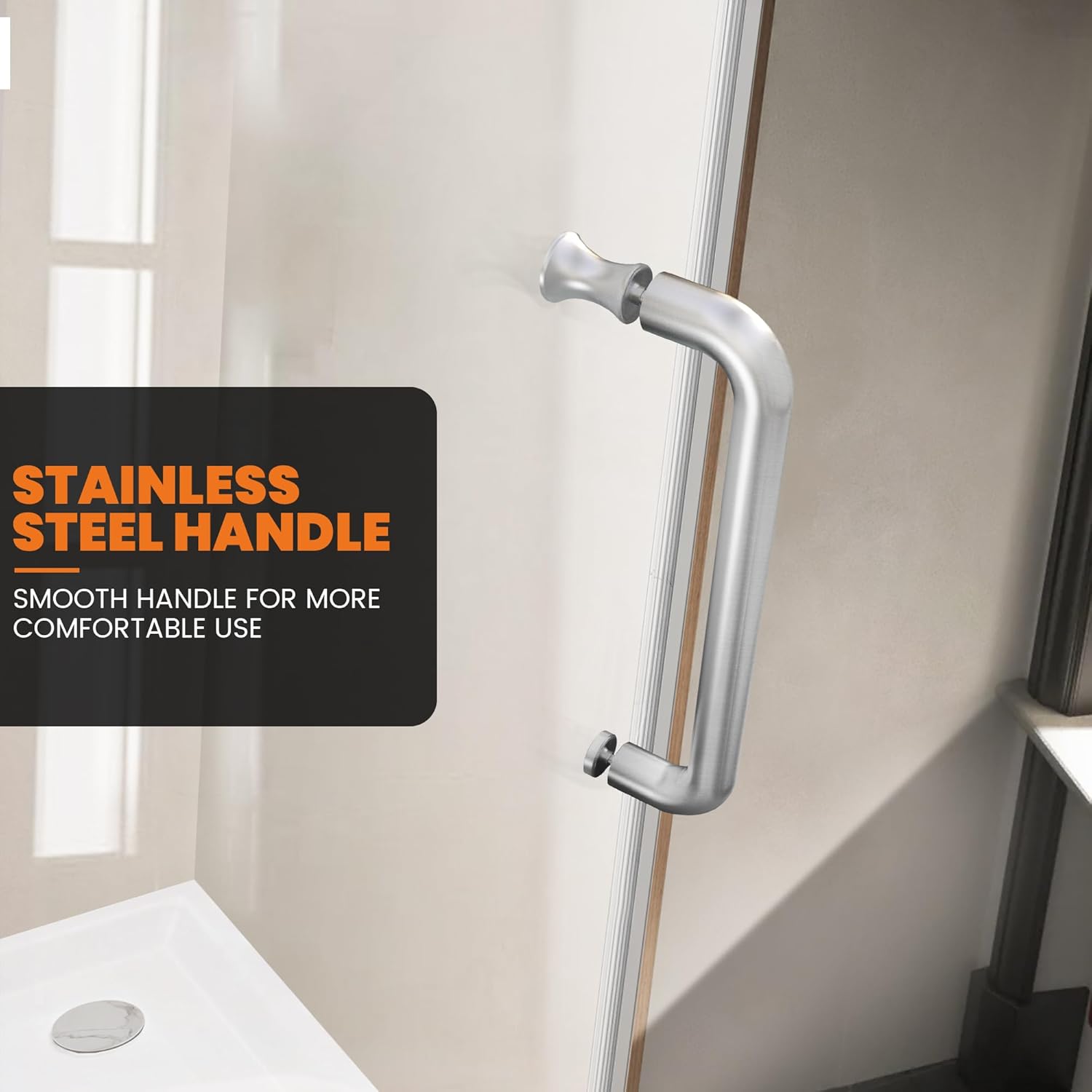

Easy to Open: The stainless steel handle is easy to grasp and adds a sleek touch to your shower door.

ATTENTION: This model has NO adjustment for width or out-of-plumb (uneven walls).

Series Name

Aurora

Dimensions

24"/28"/32" Width x 72" Height

Glass Width

23.33" / 27.30" / 29.31" / 31.32"

Glass

5/16"(8mm) Clear Tempered Safety Glass

Frame Type

Frameless

Finish Options

Matte Black / Brushed Nickel

Door Type

Hinged

Frequent Asked Questions

If you have any additional questions, please submit a form, and we will respond within 24 hours.

Fast & Free U.S. Shipping

Your purchase delivered to you free of charge anywhere in the United States.

30-Day Money Back Guarantee

You can return the product within 30 days from the date of receipt, with no reason required.

10-Year Limited Warranty

We offer a 10-year limited warranty for all AquivaCoast Shower Doors.

Step into the Elegance of Aurora

The swing shower glass door from our Aurora Series exemplifies contemporary elegance with its frameless design. Available in 24"/28"/32" width x 72" height sizes, it features a sturdy, rust-resistant handle that ensures lasting functionality while maintaining a sleek appearance. A precision-engineered bottom seal strip provides a watertight enclosure, keeping your shower area clean and dry. For added safety and peace of mind, the door is crafted with 5/16” thick glass, offering exceptional durability.

Shower Door|Aurora A10 - NB - Shower Door - AquivaCoast Showers - 5/16 inch glass - Clear - Frameless

Sleek and Sturdy Aesthetics

The frameless construction combines the sturdiness of a framed door with the modern, airy feel of a frameless design. The high-quality metal handle enhances the door's sophistication and ensures durability, rust resistance, and resistance to bending. 24"/28"/32" widths to perfectly complement your bathroom’s layout.

Shower Door|Aurora A10 - NB - Shower Door - AquivaCoast Showers - 5/16 inch glass - Clear - Frameless

Advanced Glass Features

The glass in our Aurora Series doors is ANSI Z97.1 certified for safety and durability. Crafted with precision, it offers a sleek appearance and reliable performance, making your shower experience both stylish and hassle-free.

Shower Door|Aurora A10 - NB - Shower Door - AquivaCoast Showers - 5/16 inch glass - Clear - Frameless

Leakproof Door Seal

Experience the ideal blend of elegance and efficiency with our meticulously designed glass door. Equipped with seal strips on the sides and bottom, this door ensures a flawless, leakproof seal for enhanced durability and longevity.

Installation Manual

Download

Need help?

Need assistance finding the perfect shower door? Interested in a bulk order or have a specific question? We’re happy to help! Complete the form below and we’ll be in touch within 2 business days.
