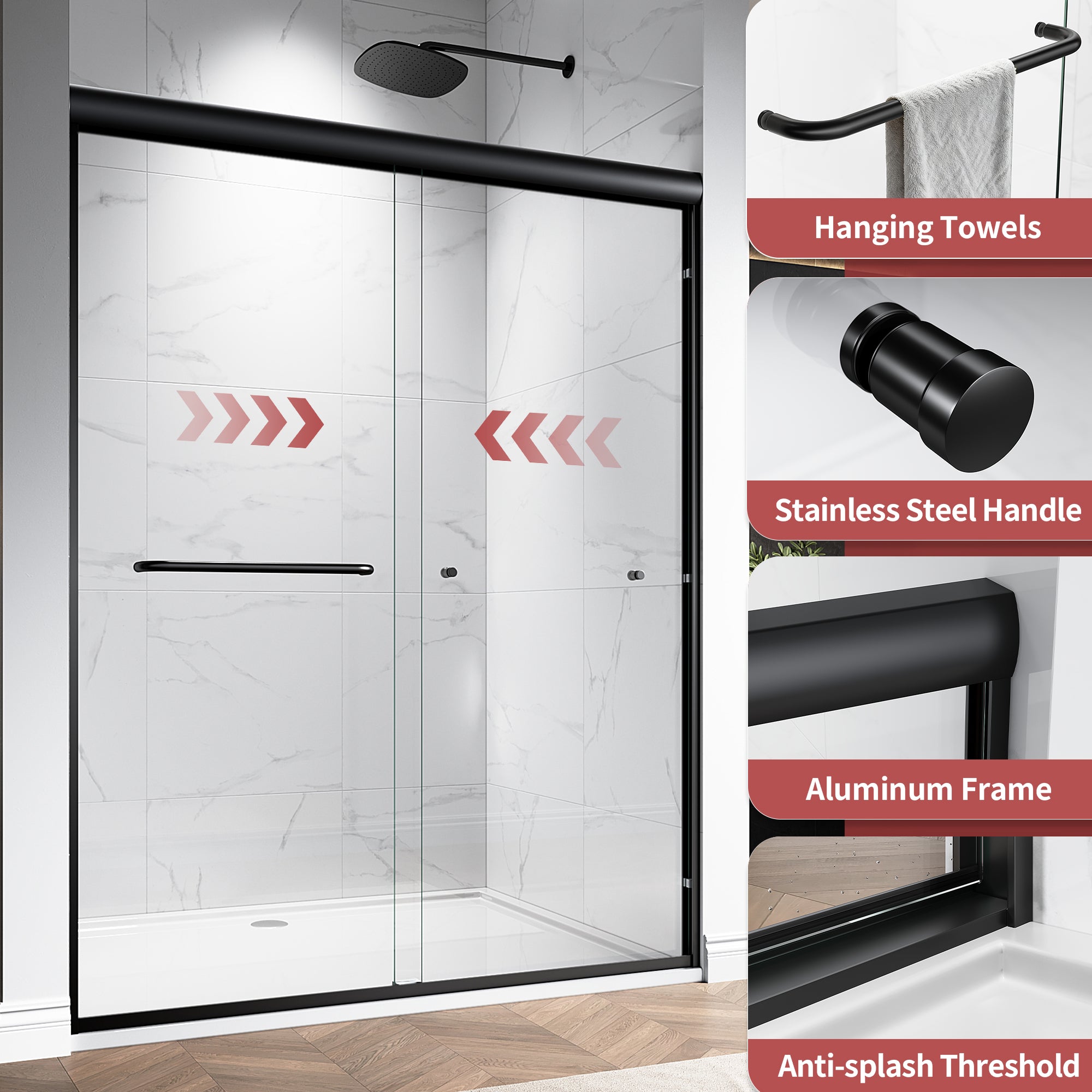

Shower Door|Glide GB01

48"/60" W x 72"/76" H Framed Bypass Double Sliding Door with 1/4" (6 mm) Clear Tempered Nano Coating Glass and Towel Bar

SKU: SA6122-D-GB01-1

Sale price$389.99 Regular price$399.99
Save 3%
Finish: Matte Black
AQUIVACOAST® MEASURING GUIDE

Shower Pans

Unlike the shower door measurements, which rely on fully finished surfaces, shower pan measurements are taken from the bare framing. All dimensions for the pan must be taken from the wall studs. This method is required because the pan is installed before the tile backer board and final finished wall surfaces are applied. Therefore, measure the width from stud to stud, the depth from the stud face to the outside of the intended curb (dam), and the location of the drain centerline from the nearest wall studs.

Shower/Bathtub Doors

Before you start, make sure you're measuring from fully finished walls or surfaces where the tile thickness has already been accounted for. Do NOT measure from bare studs.

First, use a 4-foot carpenter's level to check that your walls are perfectly plumb (vertical) and your base is level.

Vertical Opening ("A" Measurement)
Measure from the top of the shower or bathtub threshold up to the top edge of your finished wall (tile or acrylic surround).

Horizontal Opening/Width ("B" Measurement)

To ensure the best fit, you must measure the width of the opening in three specific places:

  1. The Bottom
  2. The Middle
  3. The Top

Determining the Correct Width:

  • If measurements are the same: Congratulations! You can select any standard door size that matches your dimensions.
  • If measurements vary (Out of Plumb): If your walls are out of plumb or the measurements vary, you must use the smallest of your three measurements as the final width for ordering.
    • For example: If the top is 61 in, the middle is 60 in, and the bottom is 58 in, your correct width for ordering is 58 in.

Sill/Threshold Depth ("C" Measurement)
Measure the front-to-back depth of your shower or tub threshold.

Additional Considerations:

Stud Location: Most AquivaCoast® doors need to be anchored into wall studs for secure installation. Please check your wall structure during the installation process.

Clearance Height: Check that there’s enough overhead clearance to tilt and install the glass panels.

Required measurements vary by product. For additional help, visit our FAQs or contact our Customer Support Team.






Size: 44"-48" W x 72" H

Ordered

Dec 16

Dispatched

Dec 17 - Dec 18

Delivered

Dec 20 - Dec 24

*Estimated delivery dates are based on business days and may vary.

Aquivacoast Free Replacement Logo

We understand that heavy glass and metal hardware can be fragile. For your peace of mind, should your items rarely arrive damaged, please follow the process below, and we'll provide a free replacement promptly at no extra cost.

Guaranteed Free Replacement Process

Please notify us of any damage or missing parts within 48 hours of delivery by contacting us through our Contact Page. If you notice any damage when the delivery driver is present, please refuse the delivery or record the damage on the delivery receipt. If you cannot inspect the shipment with the driver present but see damage to the boxes, please report it to us with photos of the original boxes before opening. This helps us understand how the damage occurred.

Our processes and materials are carefully designed with heavy-duty and weather-resistant packaging to minimize damage during storage and shipping. Damage is extremely rare, and most orders arrive in perfect condition. Should you find any damage to a product or part, we will promptly send you a replacement free of charge.

  • Tech support and parts to solve complicated installs
  • Dedicated service with guaranteed 24-hour replies
  • Factory direct prices are at least 25% cheaper
  • Damage-free promise replacement ships in 24-hour
  • Fast 3-7 day shipment from our US warehouse
  • 10-year manufactory limited warranty
Double Sliding Shower Door
48"/60" x 72"/76"
1/4" Glass
Reversible Installation
Width Adjusts Up to 4" By Cutting Rail
25/64" Out-of-Plumb Adjustment
Towel Bar
Easy Clean

Product Specification

Flexible Fit: The top and bottom tracks can be trimmed up to 4 inches for a customized fit—ideal for various bathroom layouts.


Durable Tempered Glass: Made of 1/4" (6mm) clear tempered glass, offering superior strength, impact resistance, and long-term durability for everyday use.


Smooth Dual-Sliding Design: Features a bypass-style configuration allowing both panels to slide, providing entry from either side. Quiet rollers ensure effortless and silent operation.

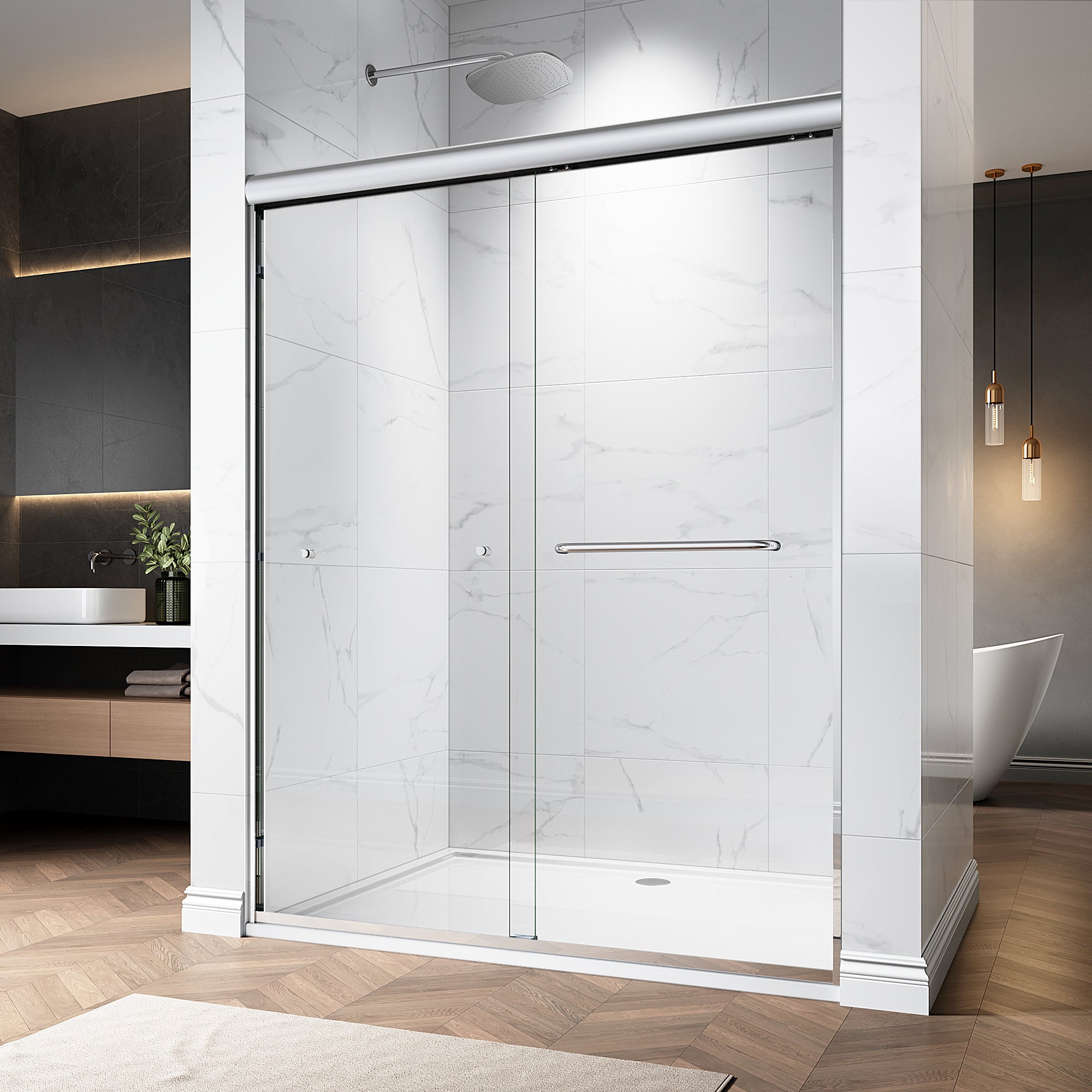

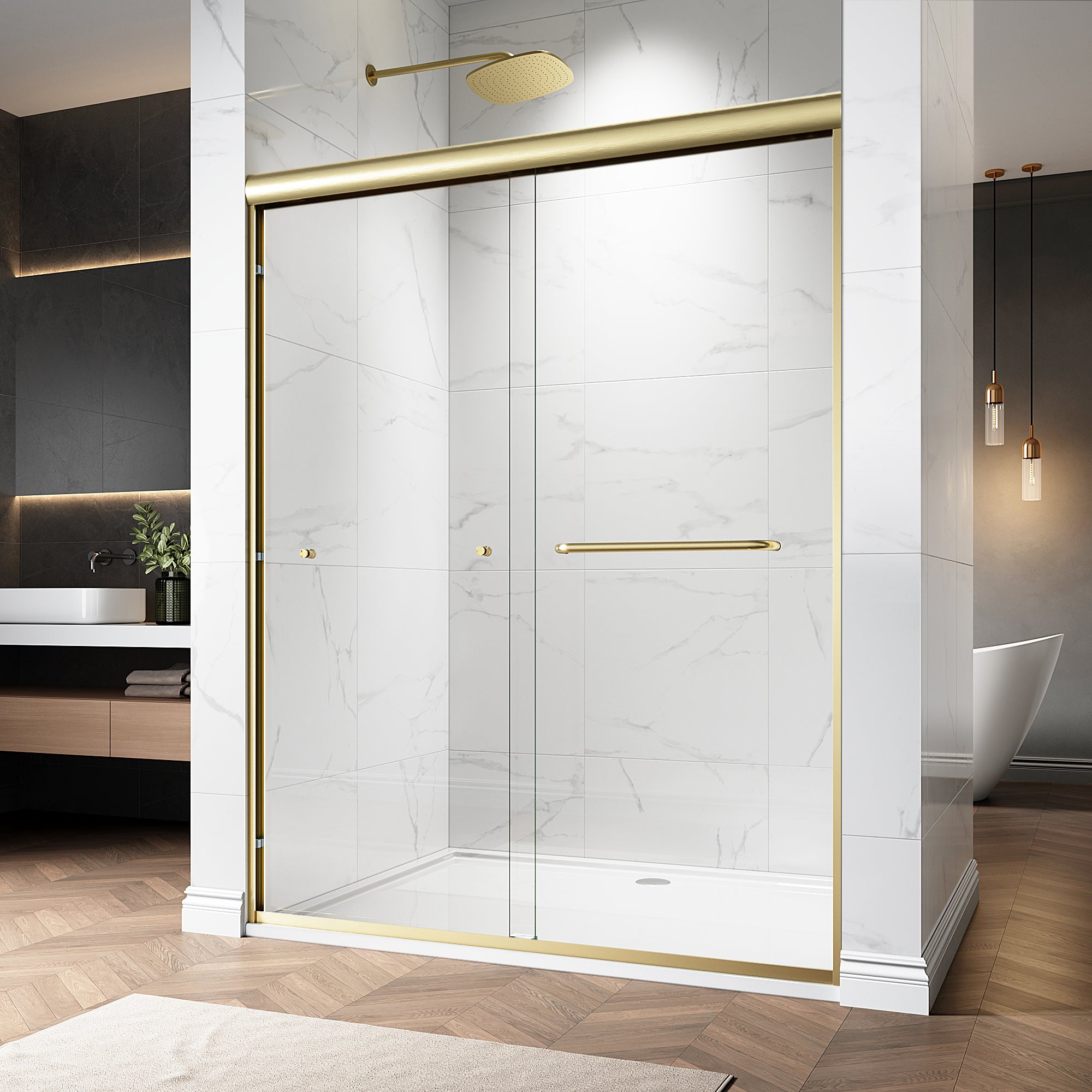

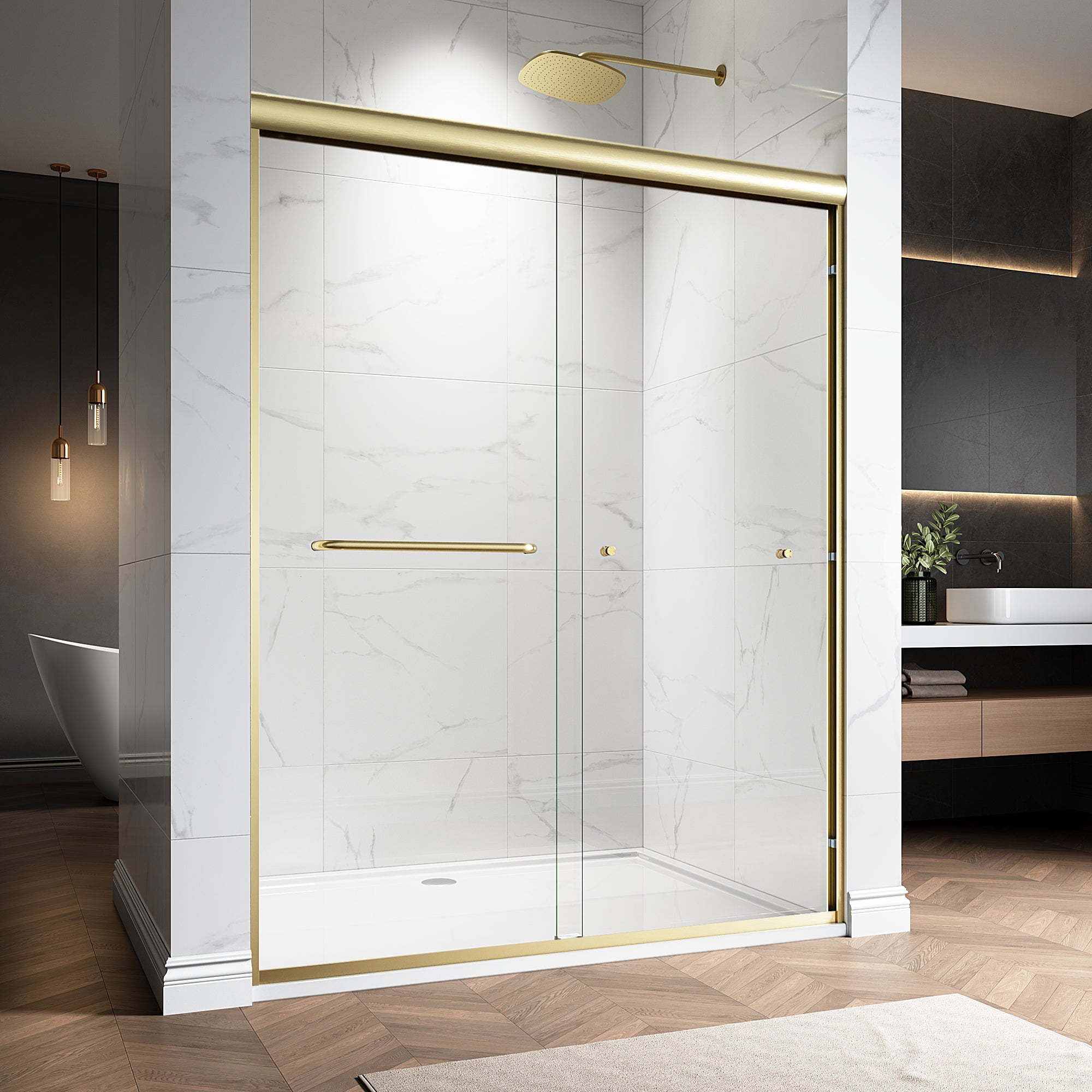

Stylish Metal Finishes: Available in Matte Black, Brushed Gold, and Chrome to coordinate with most modern bathroom fixtures and décor themes.


Easy to Clean & Maintain: The clear glass surface resists water spots and soap scum. A simple wipe keeps it sparkling clean—perfect for busy households seeking low-maintenance luxury.

Series Name

Glide

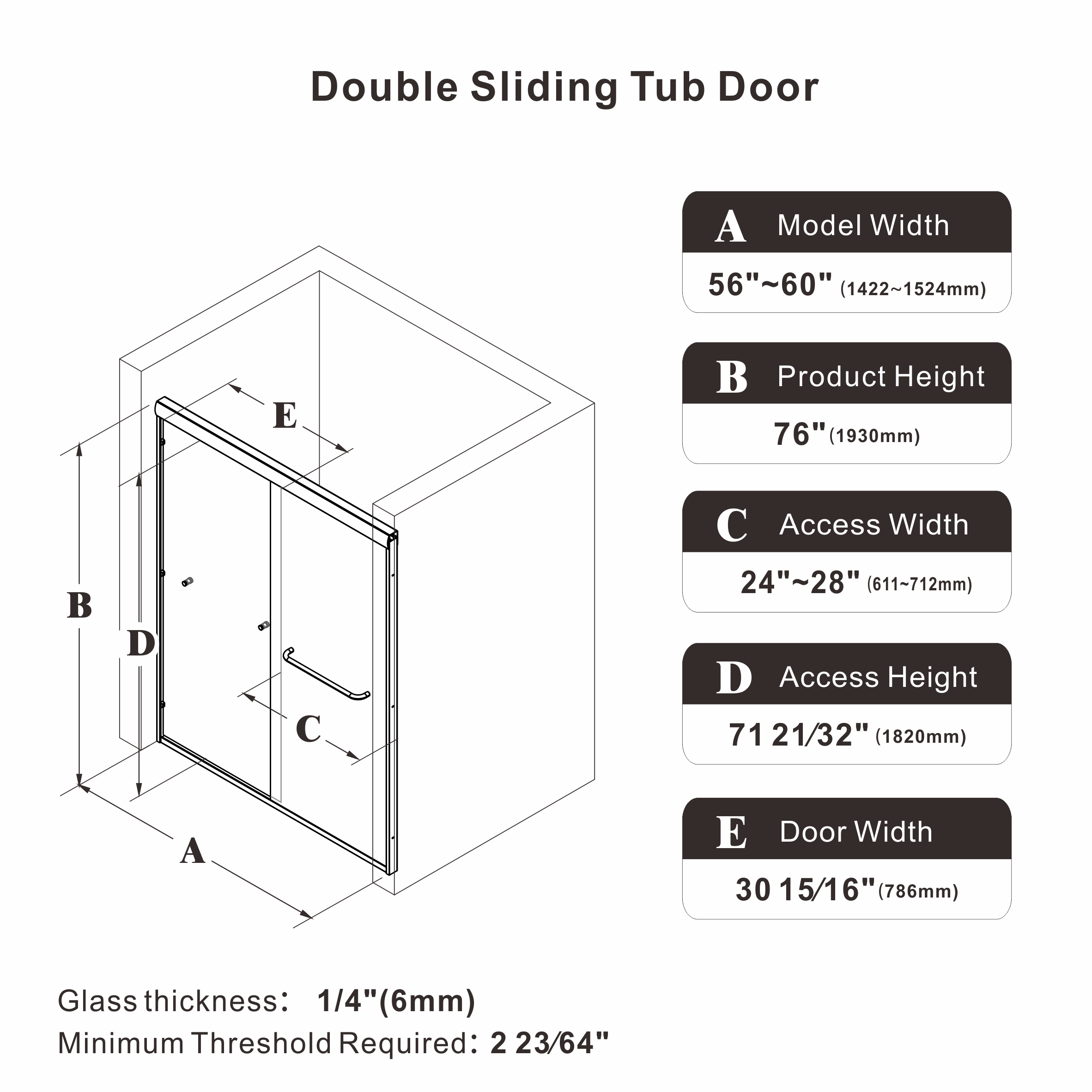

Dimensions

44" - 48" W x 72" H (Walk-In Opening: 18" - 22")
56" - 60" W x 72" H (Walk-In Opening: 24" - 28")
56" - 60" W x 76" H (Walk-In Opening: 24" - 28")

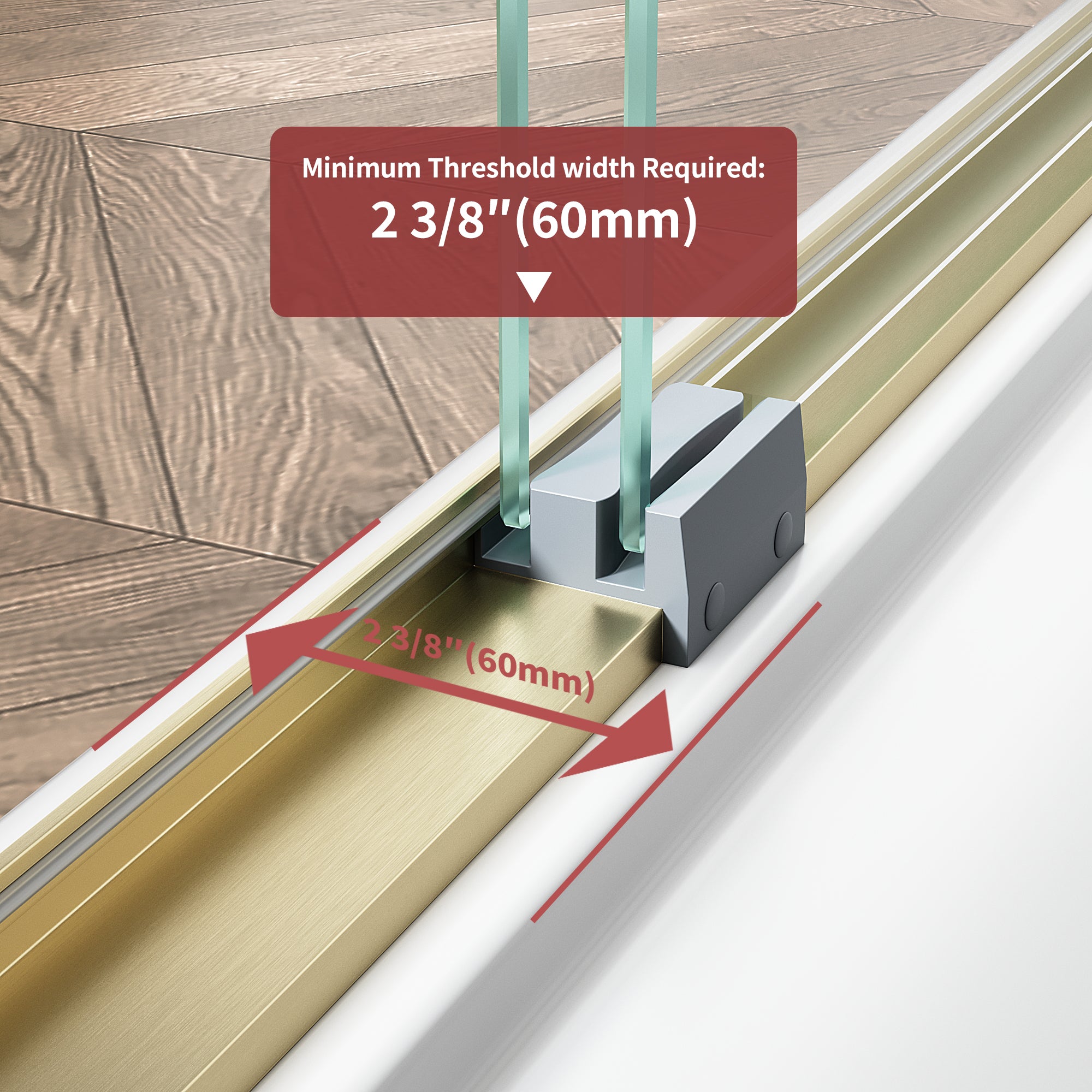

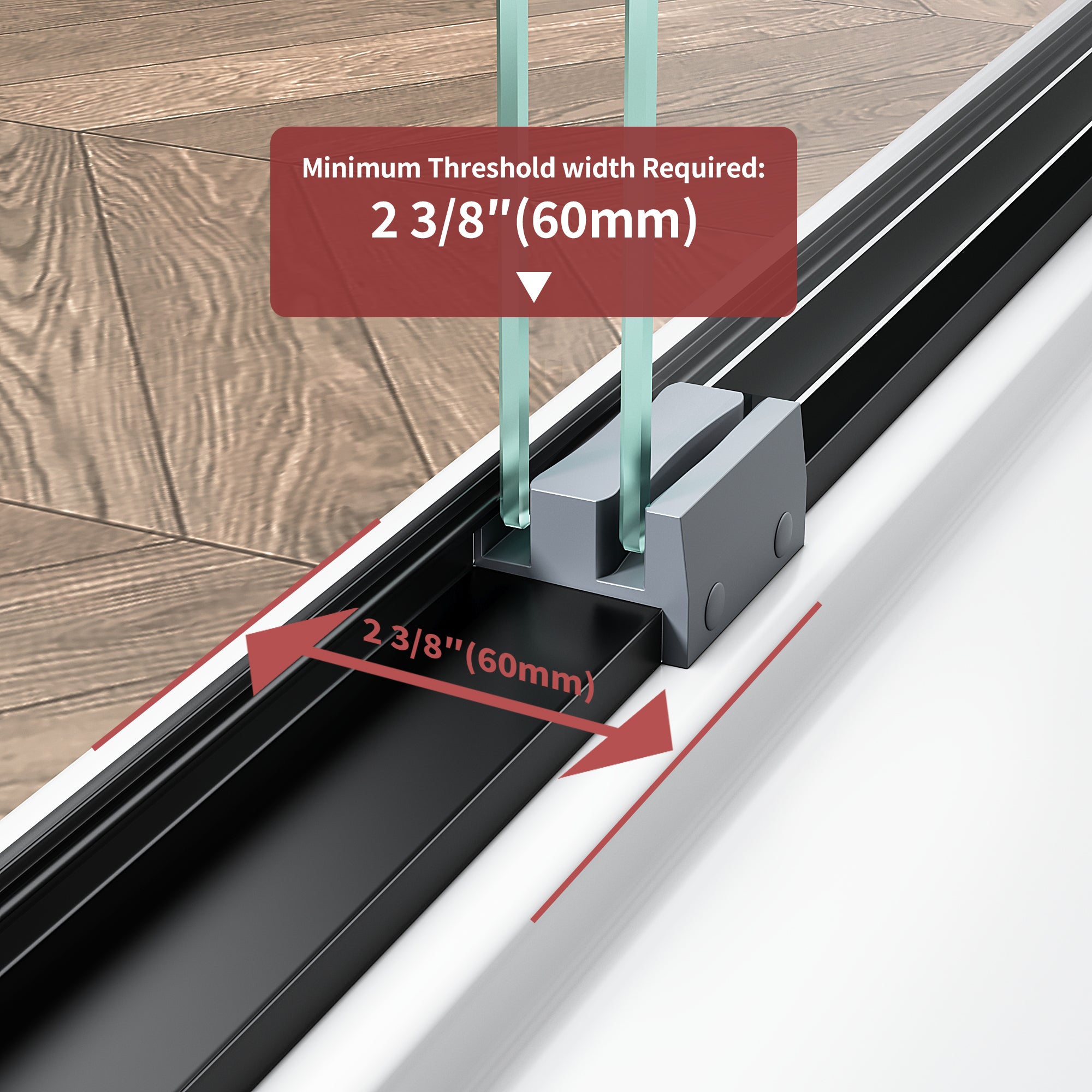

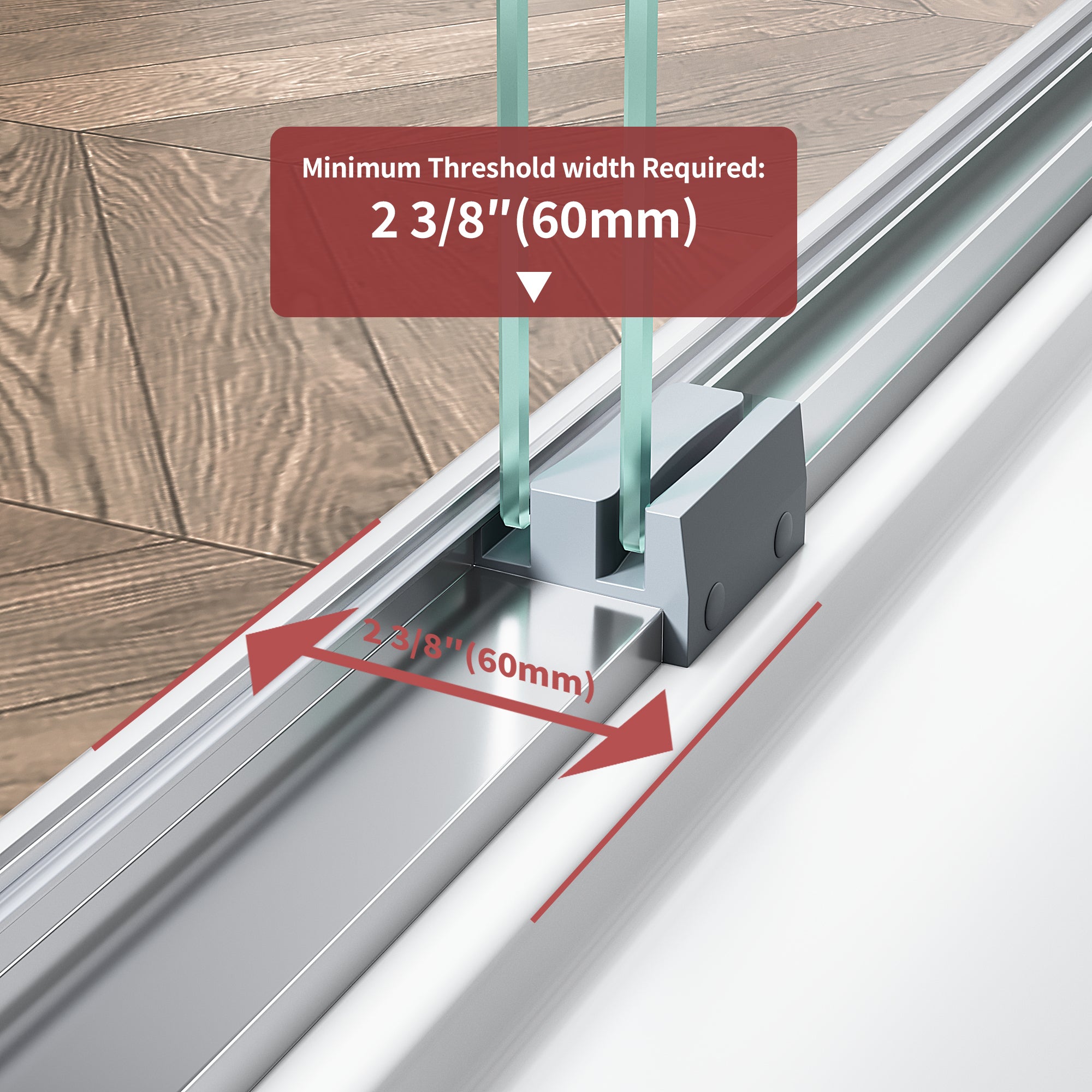

Min Threshold Depth

2.36" (60mm)

Glass

1/4" (6mm) Clear Tempered Safety Glass

Door Type

Double Sliding

Frame Type

Framed

Finish Options

Brushed Gold / Matte Black / Chrome

Fast & Free U.S. Shipping

Your purchase delivered to you free of charge anywhere in the United States.

30-Day Money Back Guarantee

You can return the product within 30 days from the date of receipt, with no reason required.

10-Year Limited Warranty

We offer a 10-year limited warranty for all AquivaCoast Shower Doors.

Where Modern Design Meets Everyday Comfort.

Elevate your shower space with this sleek 6mm double sliding glass door—where clean lines meet everyday functionality. Designed with smooth-glide silent rollers and a frameless aesthetic, it delivers a quiet, effortless experience with every slide. The crystal-clear tempered glass features an easy-clean nano coating that resists water spots and soap buildup, keeping your shower looking pristine. Choose from four timeless finishes—Matte Black, Chrome, and Brushed Gold—to match your personal style. With its reversible opening and adjustable width, this door adapts seamlessly to your space while making a bold, modern statement.

48"/60" W x 72"/76" H Framed Double Sliding Door with 1/4" (6 mm) Clear Tempered Nano Coating Glass and Towel Bar #Color_ Brushed Gold

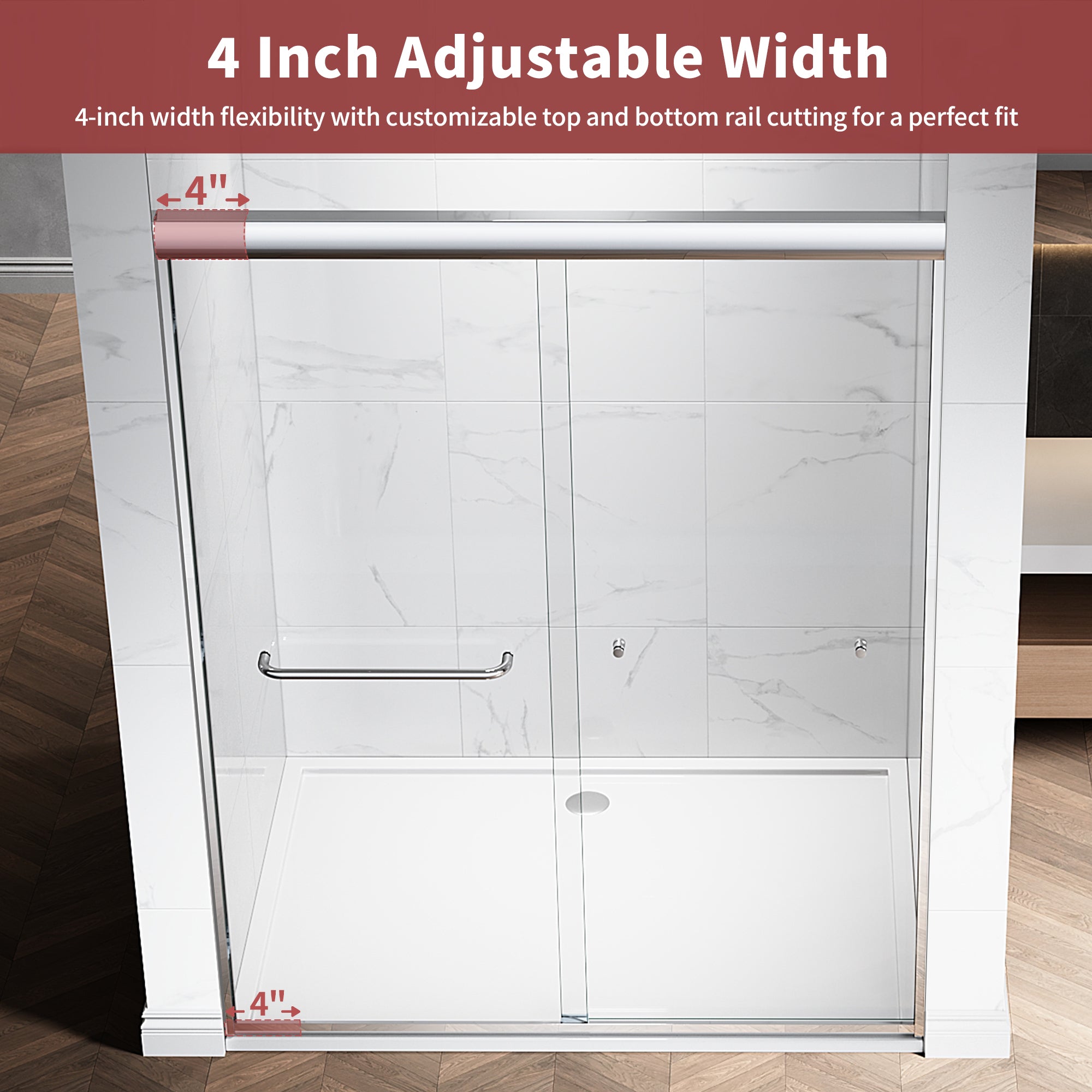

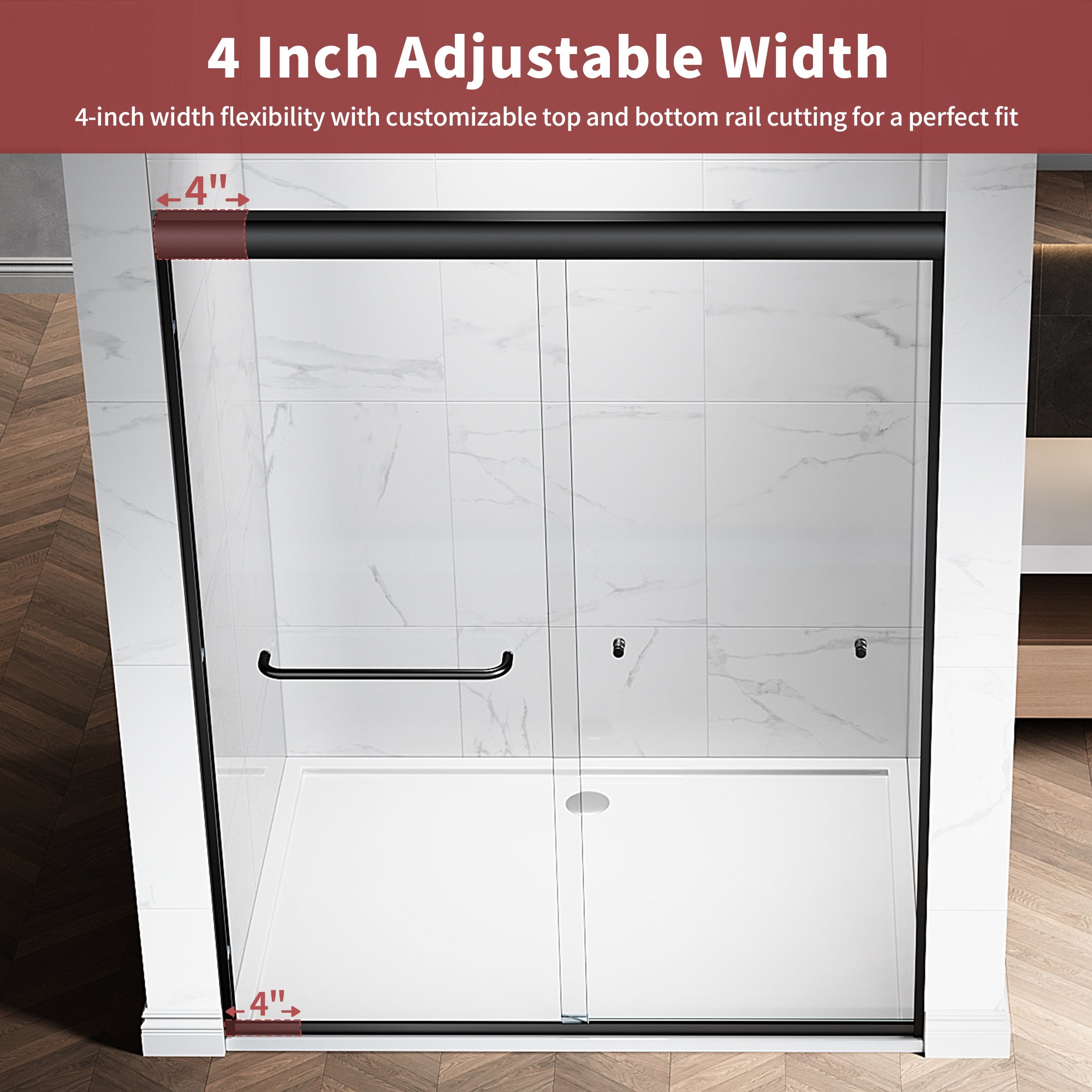

Precision-Fit Adjustable Width

The adjustable top and bottom tracks allow up to 4 inches of trimming for a precise fit in shower openings. Perfect for bathrooms with slightly uneven or non-standard walls.

48"/60" W x 72"/76" H Framed Double Sliding Door with 1/4" (6 mm) Clear Tempered Nano Coating Glass and Towel Bar

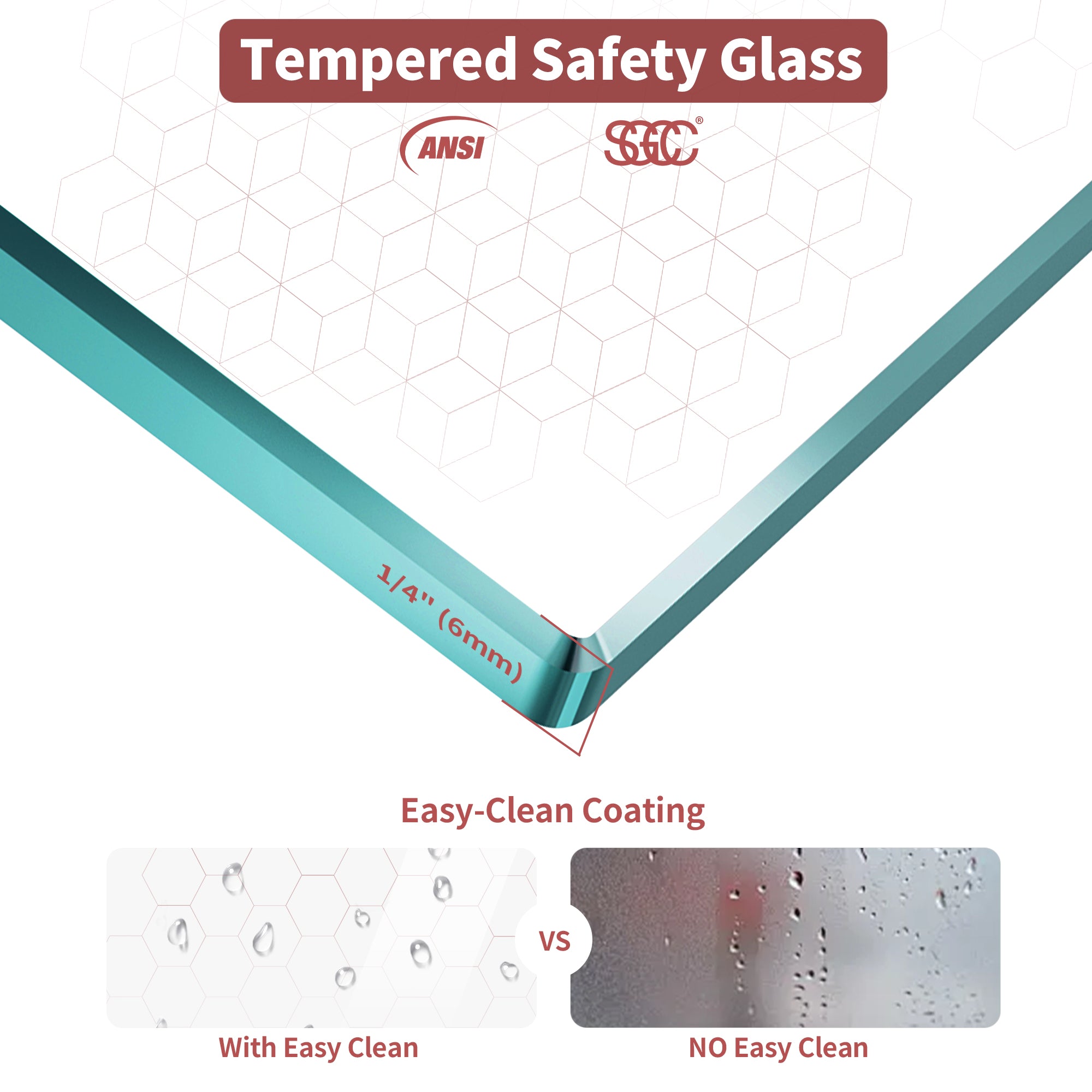

Easy-Clean Tempered Safety Glass

The 6mm tempered glass features a nano waterproof coating that repels water, soap, and limescale. It stays clearer for longer and is easy to wipe clean—perfect for busy households looking for low-maintenance luxury.

48"/60" W x 72"/76" H Framed Double Sliding Door with 1/4" (6 mm) Clear Tempered Nano Coating Glass and Towel Bar #Color_ Brushed Gold

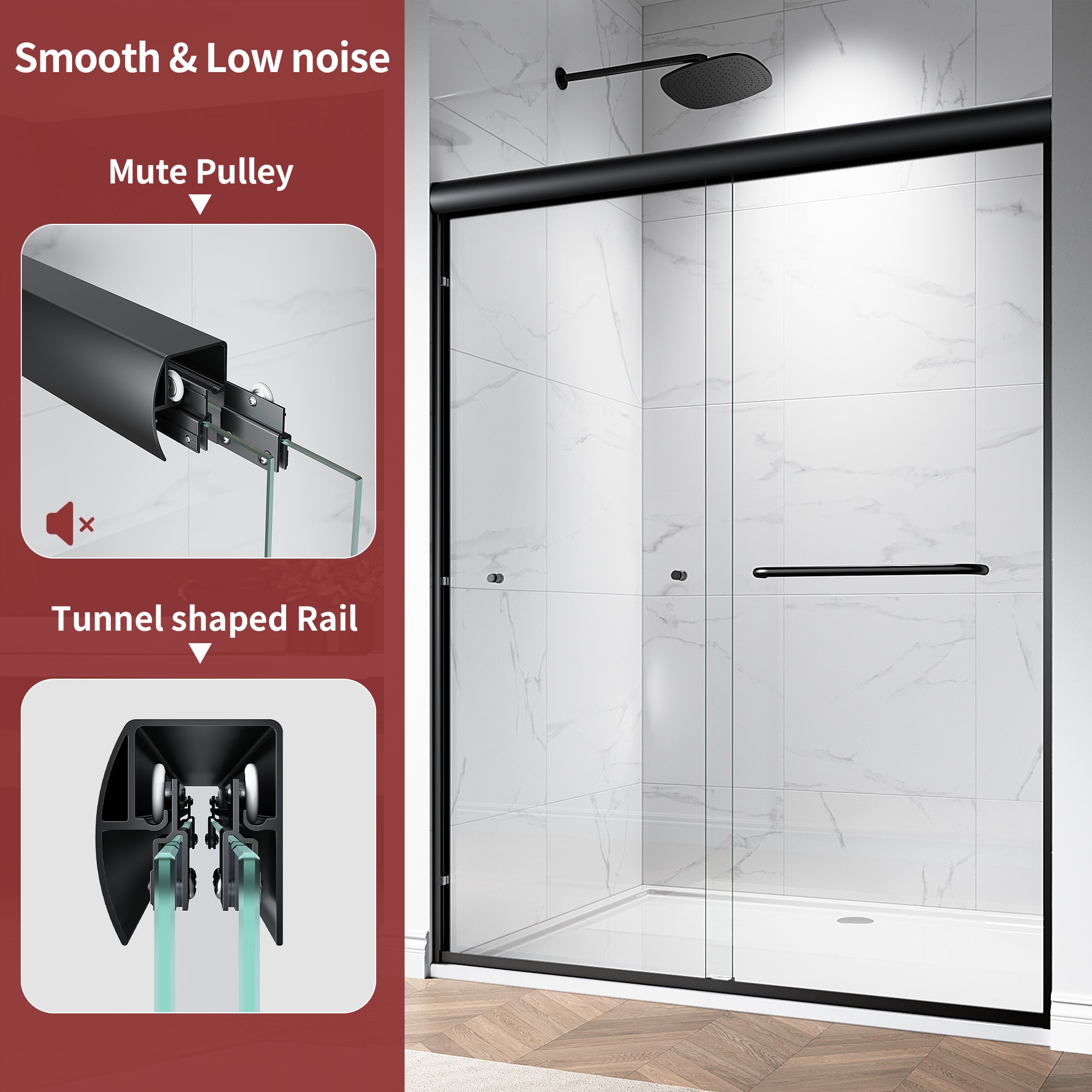

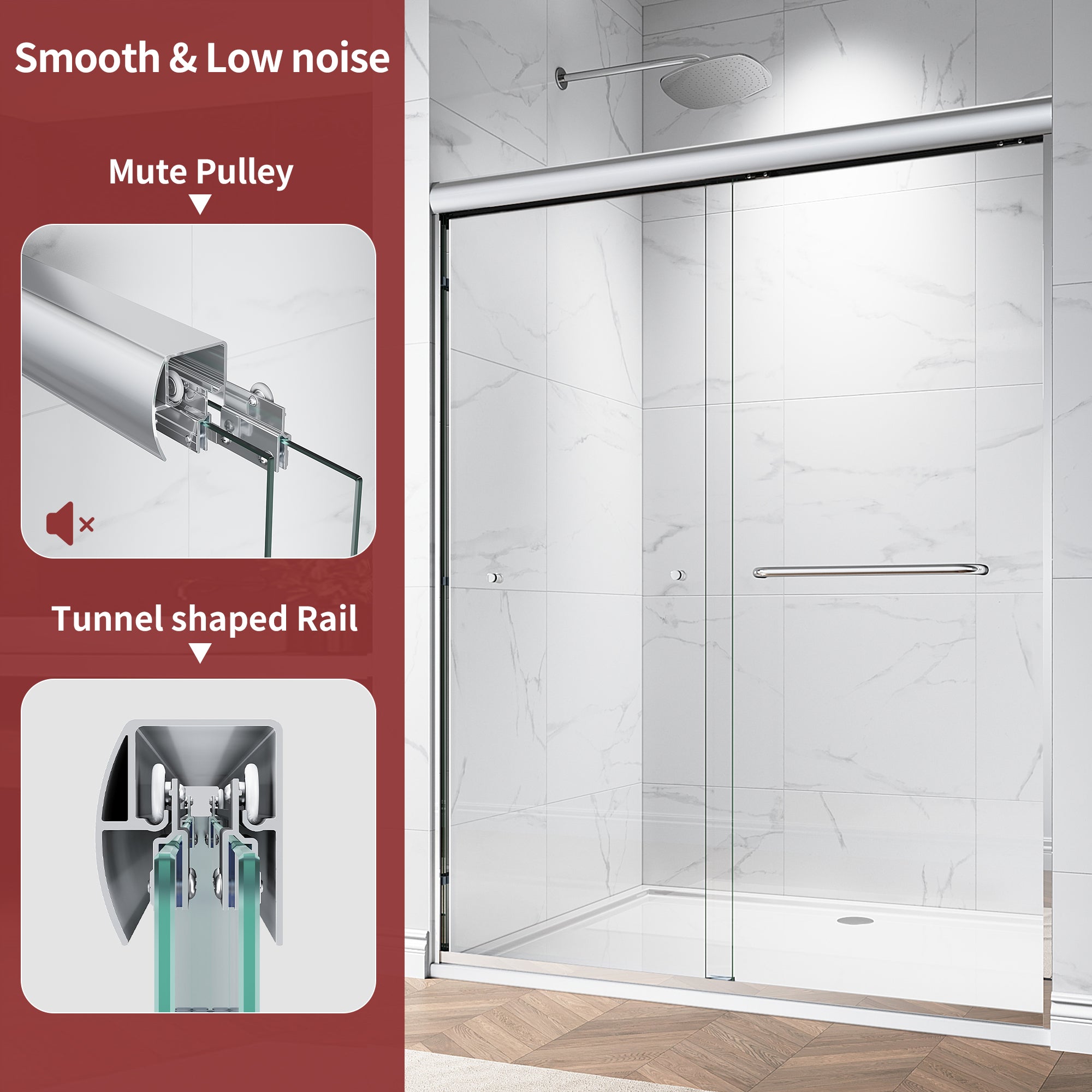

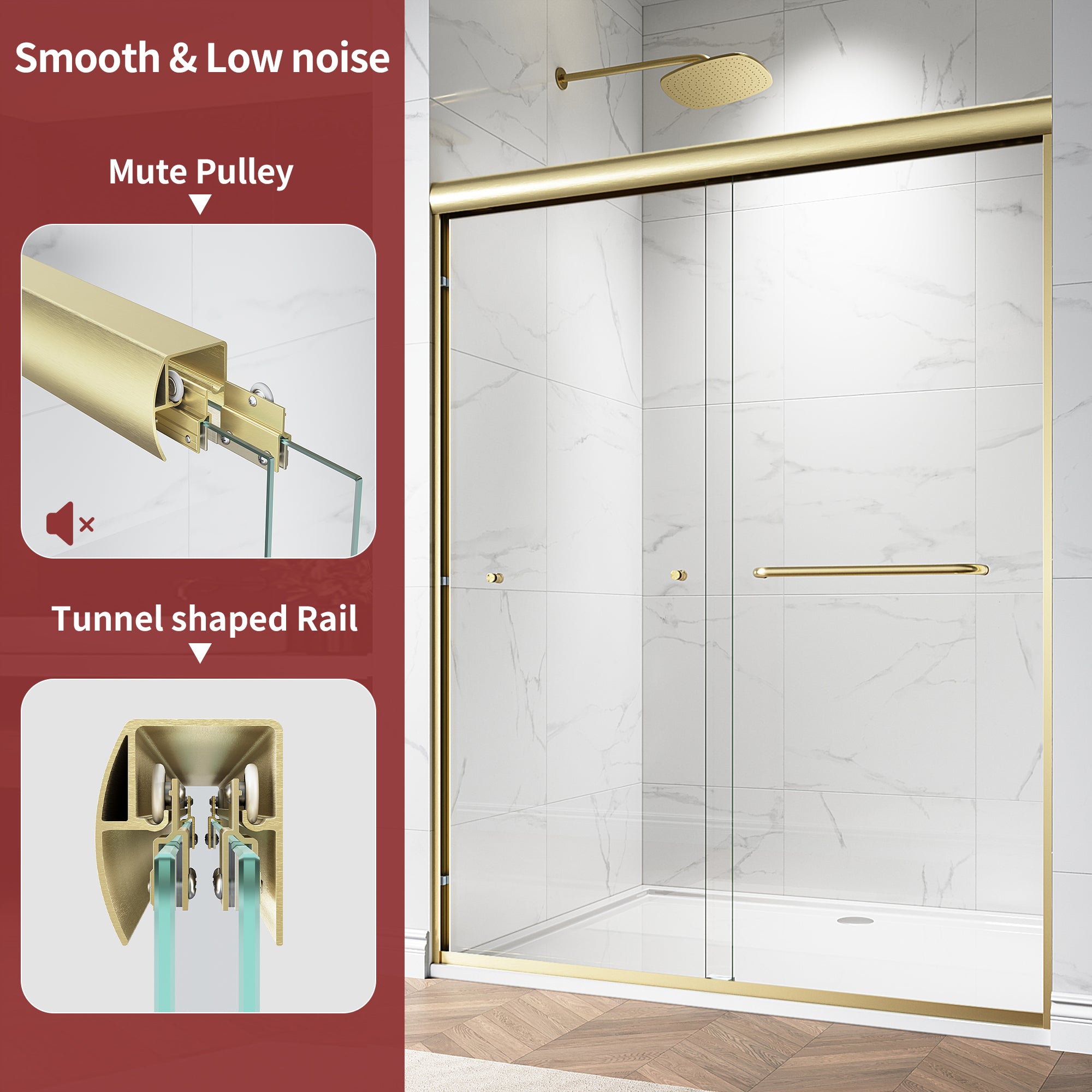

Quiet Glide Rollers

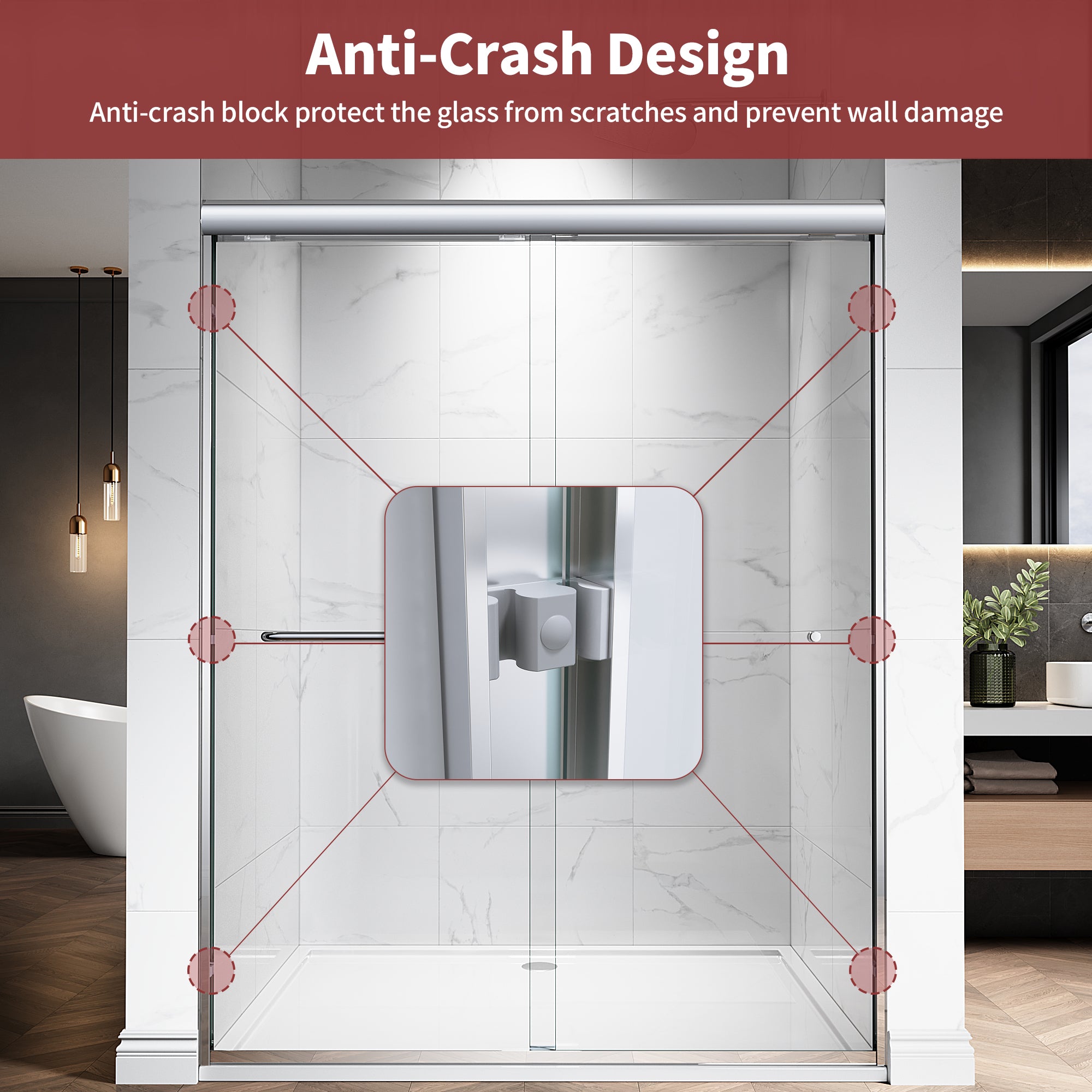

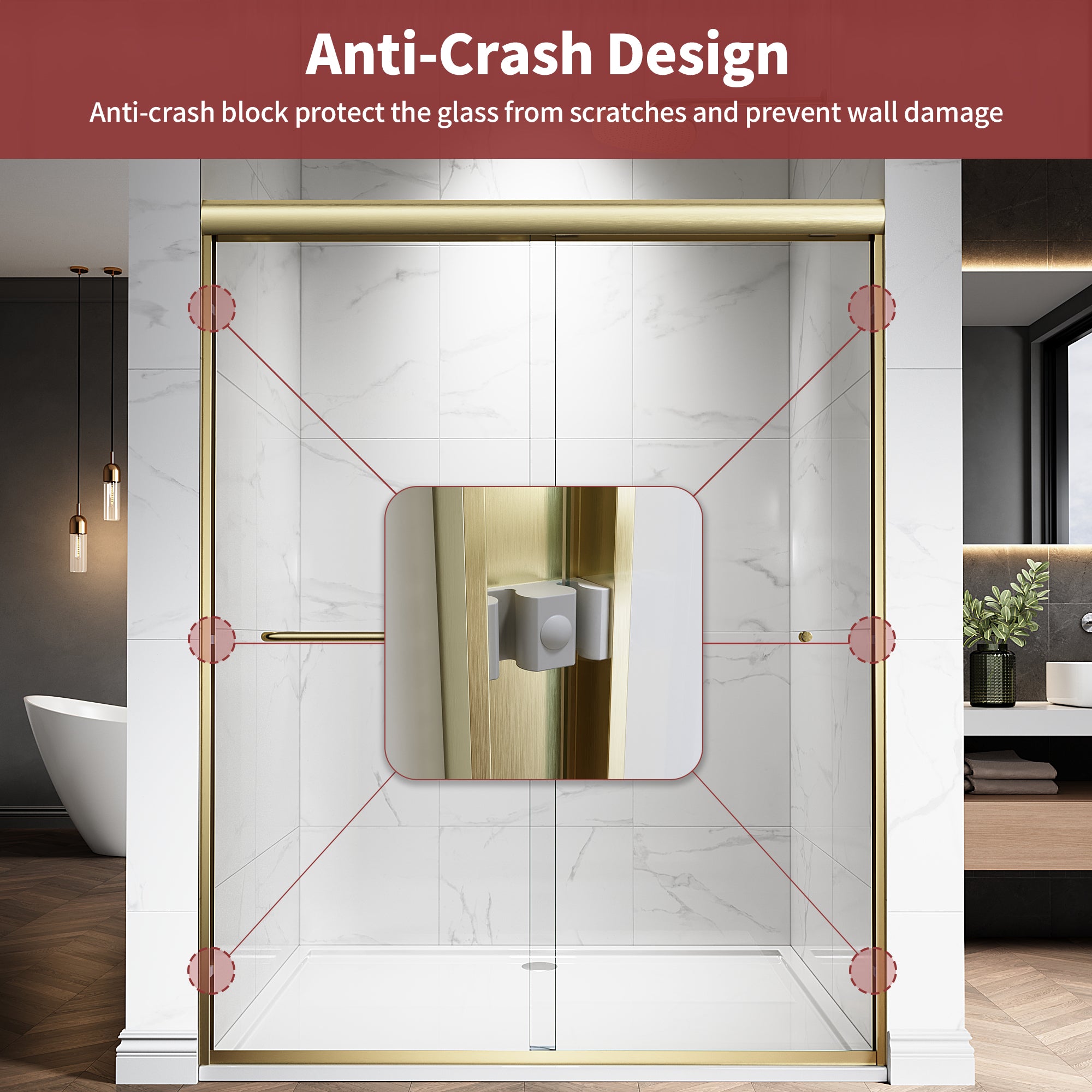

Equipped with hidden silent rollers for smooth, whisper-quiet gliding, plus 6 built-in silicone bumpers in the wall profile to absorb impact and protect both the glass and walls from damage.
